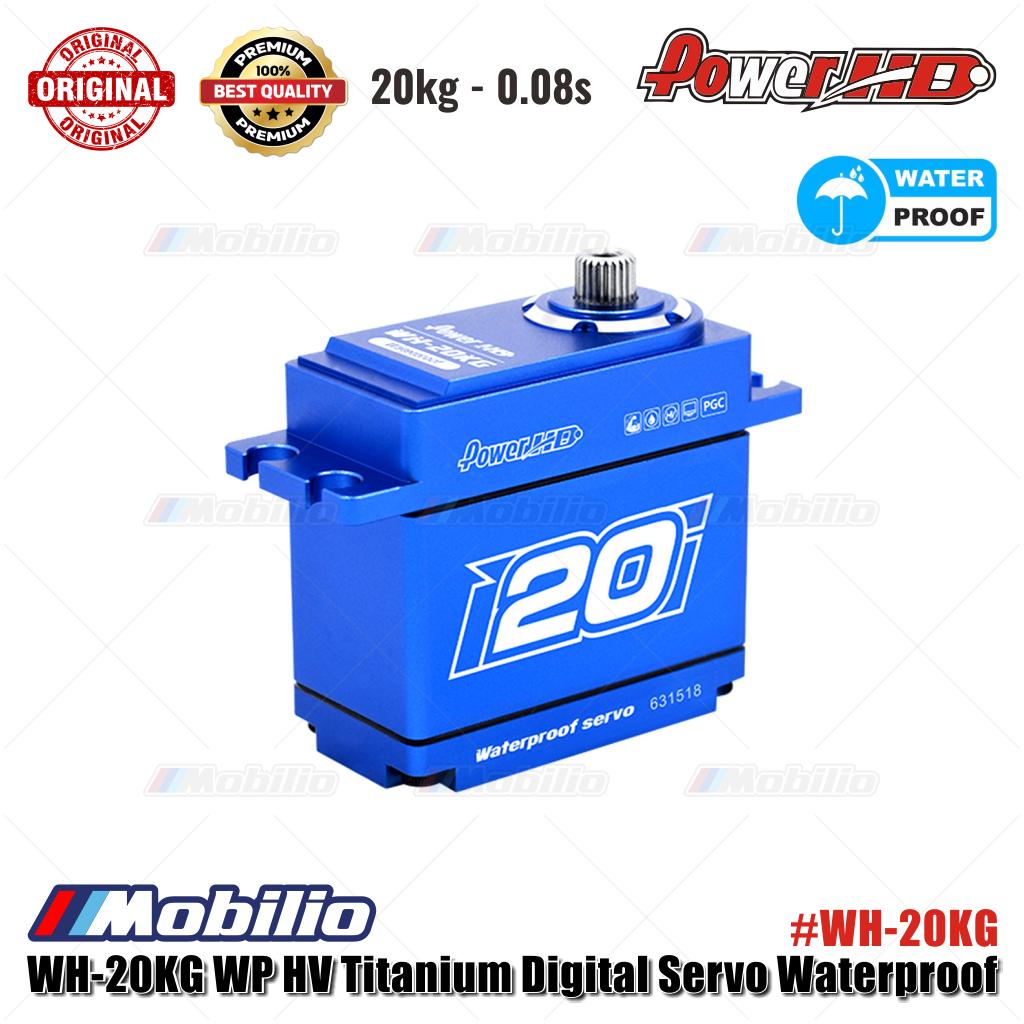

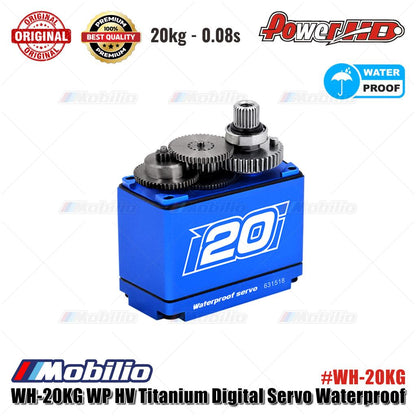

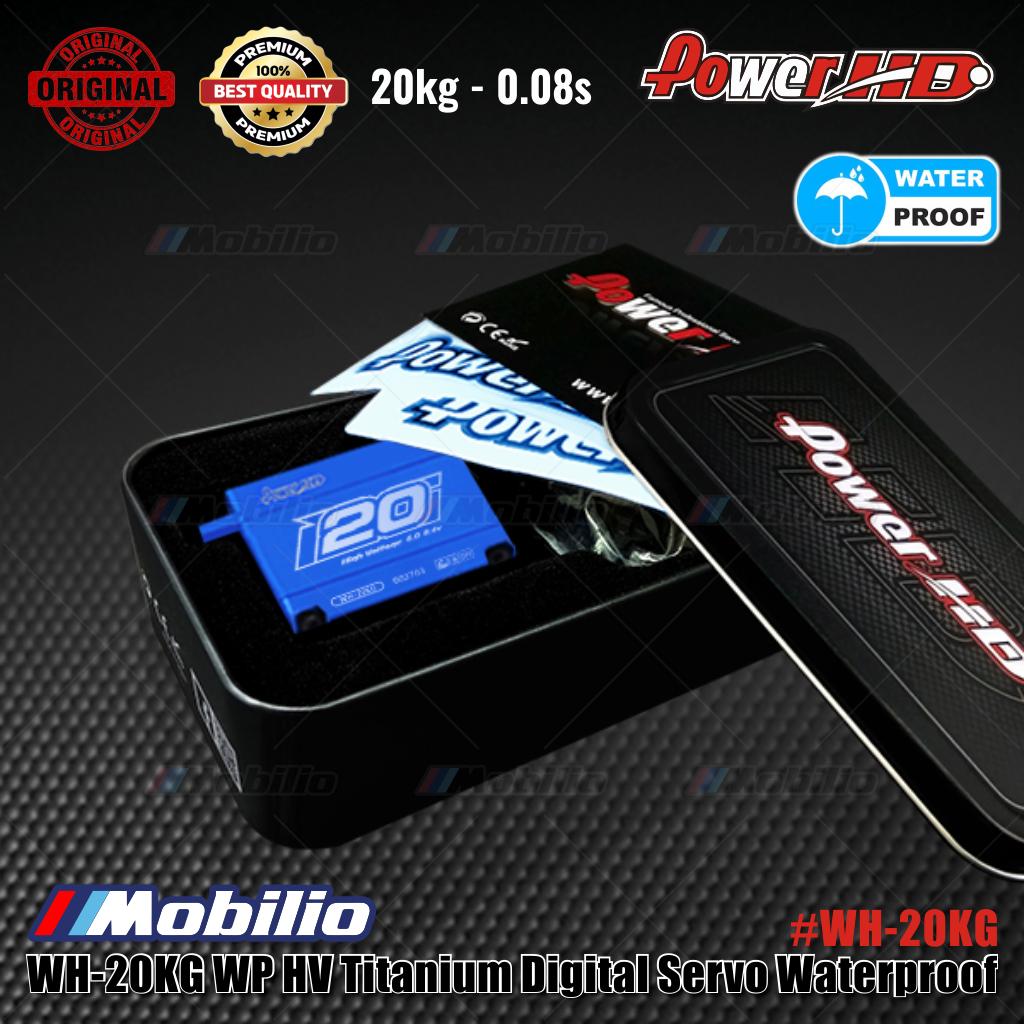

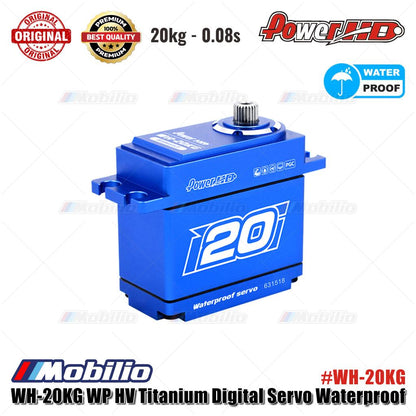

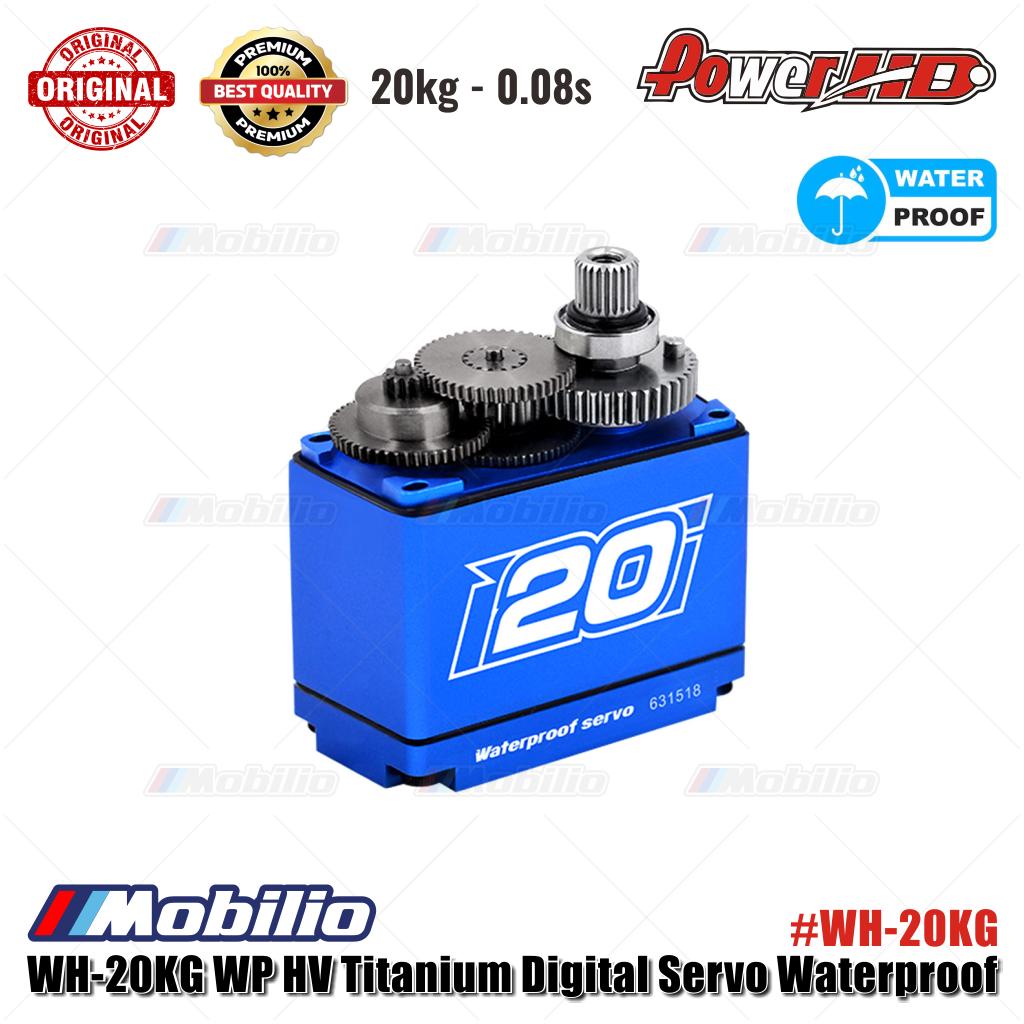

Power HD WH20KG HV Waterproof Servo 20kg - 0.08s #WH-20KG for RC 1/8th Off-road and 1/10th Crawler Applications

Power HD WH20KG HV Waterproof Servo 20kg - 0.08s for RC 1/8th Off-road and 1/10th Crawler Applications

The Power HD WH20KG HV Waterproof Servo delivers a strong blend of torque and speed for demanding RC applications. Rated at 20kg with a swift 0.08s transit time, this model (part number HD-WH-20KG) is aimed at the most challenging 1/8th off-road and crawler use, pairing a rigid aluminium case with hardened steel gears and advanced control electronics.

Key Features

- Blue anodised CNC machined aluminium case offering maximum strength

- Customised waterproof internal ring and wiring with special glue injection to secure the cables

- Hardened steel gears to help reduce gear damage during intense driving

- 32-bit MCU high-frequency processor for precise operation, with noiseless running, locked-rotor protection and power-on slow-start protection

- High-voltage, high-torque performance: 20kg torque with 0.08s transit time

Specifications

- Torque(6.0V) : 15.0 kg-cm ( 208.3 oz/in)

- Torque(7.4V) : 18.0 kg-cm ( 250.0 oz/in)

- Torque(8.4V) : 20.0 kg-cm ( 277.7 oz/in)

- Speed : 0.11 sec (6.0V)│0.09 sec (7.4V)│

- Speed : 0.08 sec (8.4V)

- Operating Voltage ： 6.0 ~ 8.4 DC Volts

- Weight : 82.0 g (2.89 oz)

- Bearing Type ： Ball Bearing x 2

- Motor Type ： Coreless Motor

- Gear Type ： Steel & Aluminum

- Operating Temperature ： -10℃~60℃

- Working frequency ： 1520μs / 333hz

- Size ： 40.7 x 20.5 x 38.5 mm ( 1.60 x 0.81 x 1.52 in)

- Compatible with program box only

Suggested Compatibility

- 1/8th off-road platforms

- Crawler applications

Contact our customer service if you need more information.
