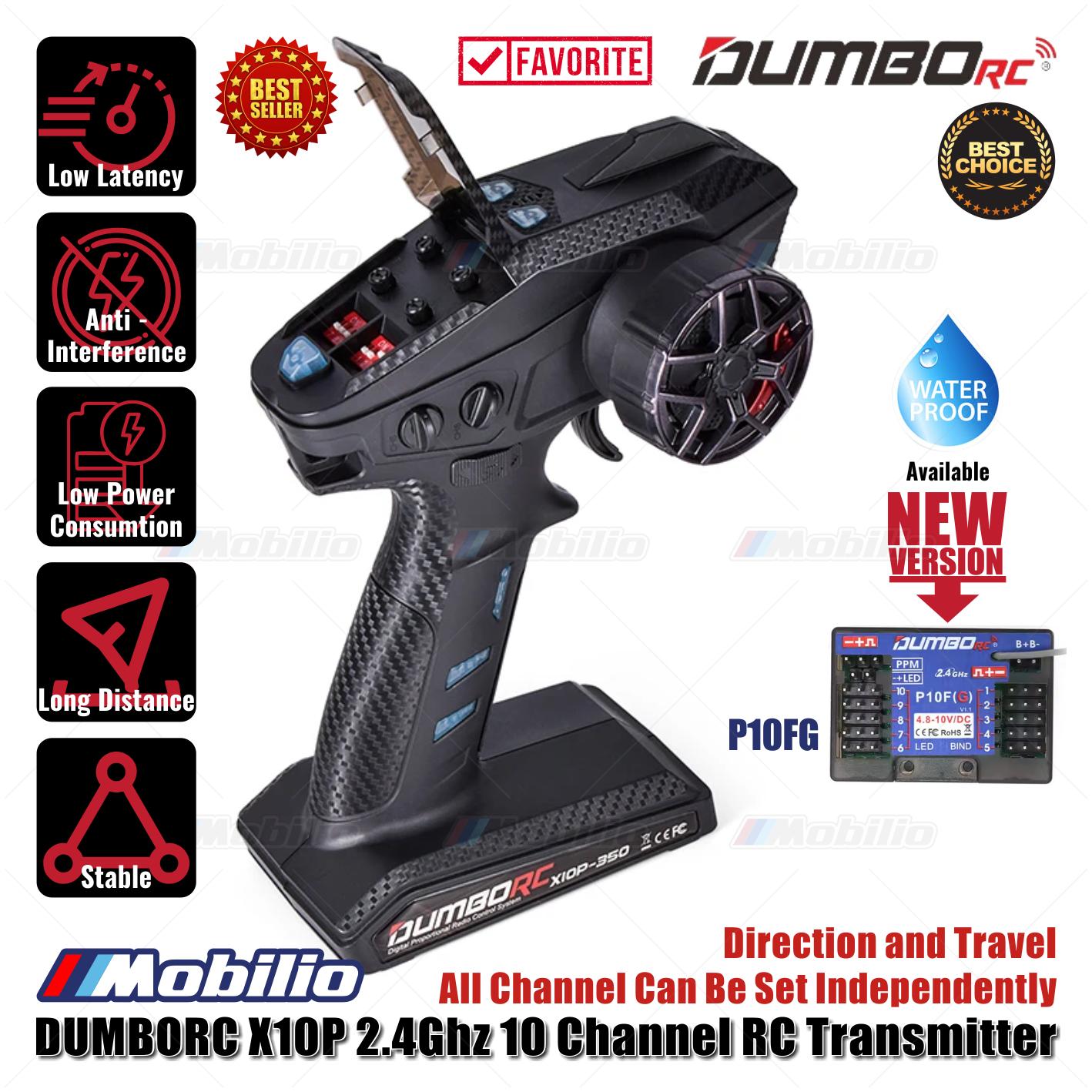

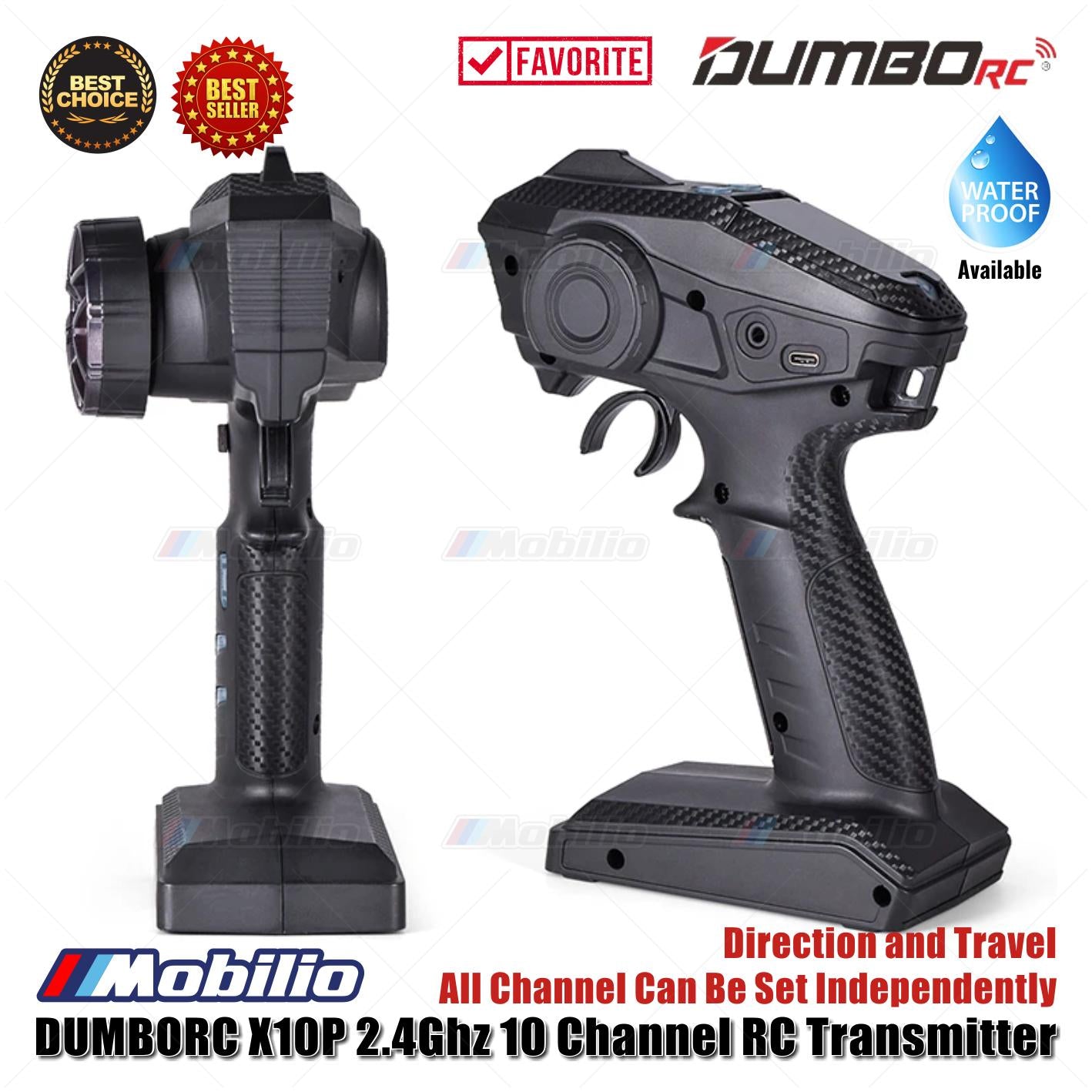

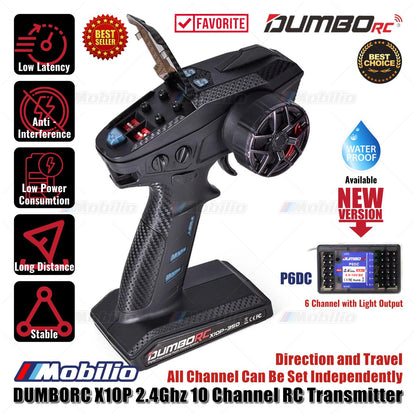

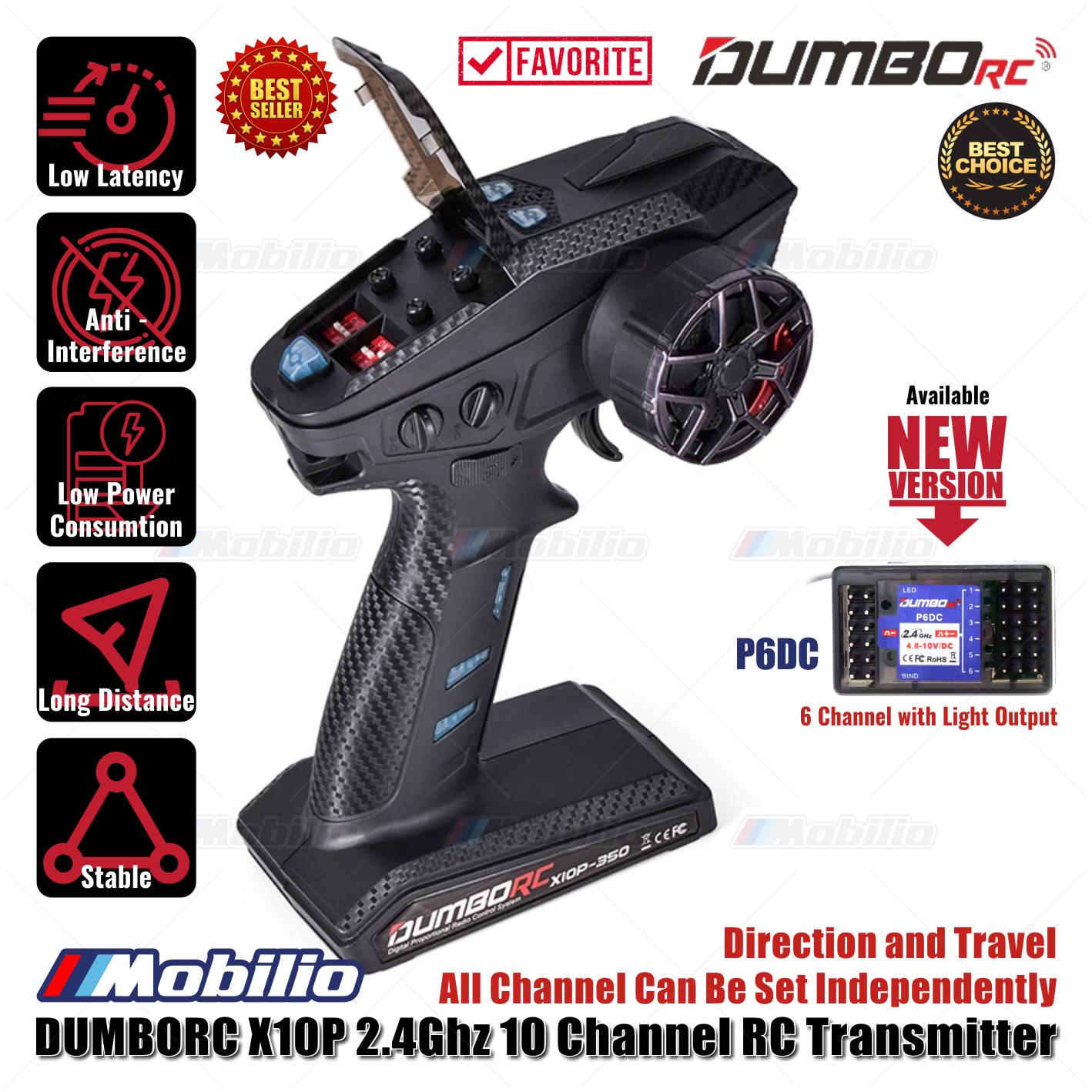

Dumborc X10P-350 10 Channel 2.4GHZ Transmitter with Receiver P10F P10FG P6DC Waterproof Version Available for Remote Control Car Boat Tank All Types of RC Models
Features :
- 2.4G spread spectrum technology, FHSS 67-channel pseudo-random frequency hopping,super anti-interference,full digital system ensures without loss of control and anti-jamming;
- Support mixed control of CH1 and CH2, CH3 and CH4, with easier mixed control settings, less prone to accidental touch;

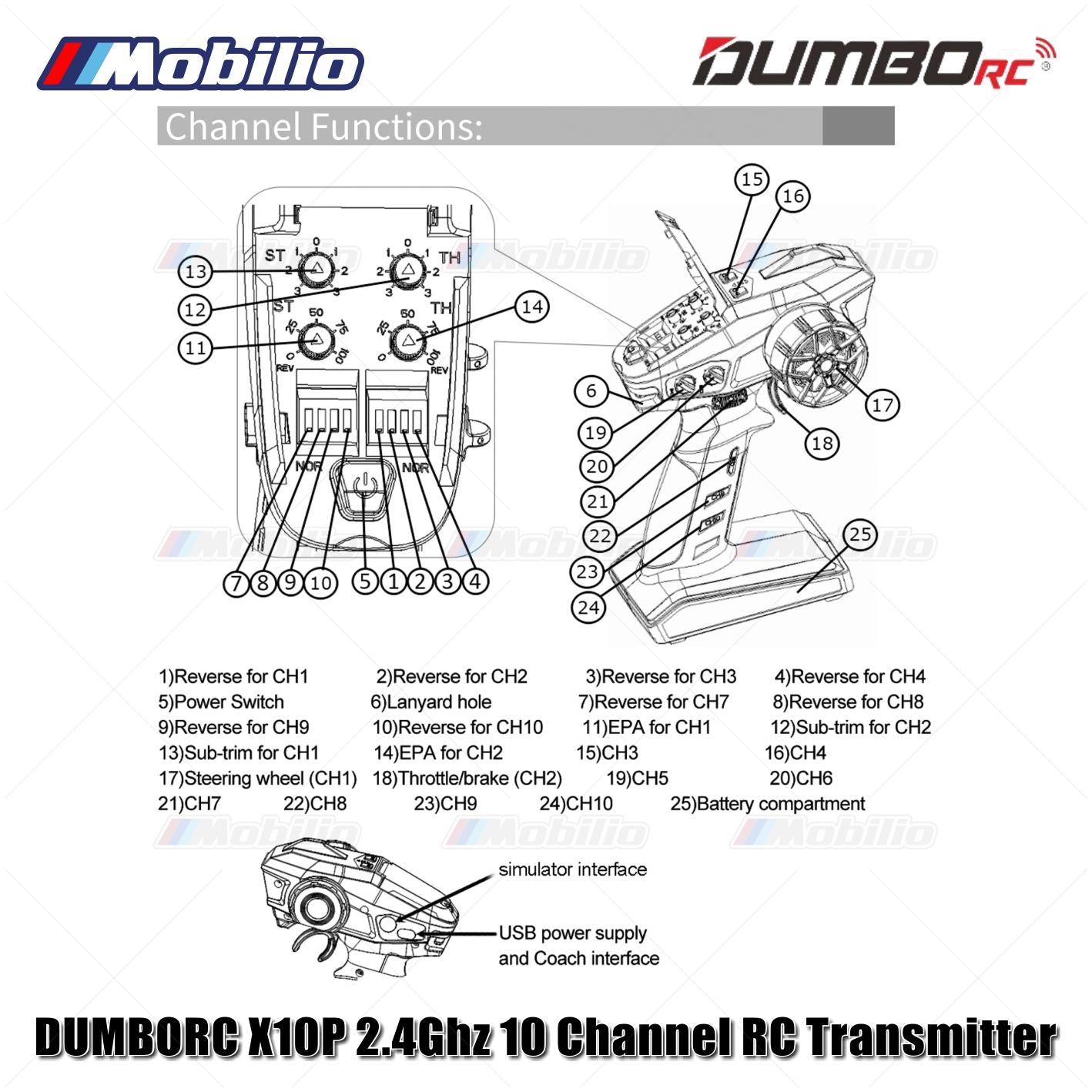

- CH1,CH2 potentiometer signal; CH3,4,9,10 self-locking button signal; CH5,CH6 potentiometer signal(with gyroscope sensitivity adjustment), CH7 3-segment switch, CH8 jog button signal;
- Independent setting of servo direction and travel for all channels;
- Receiver integrated gyroscope (optional), ensure that the model goes straight, prevents drifting, and overturning.Gyro sensitivity is available;

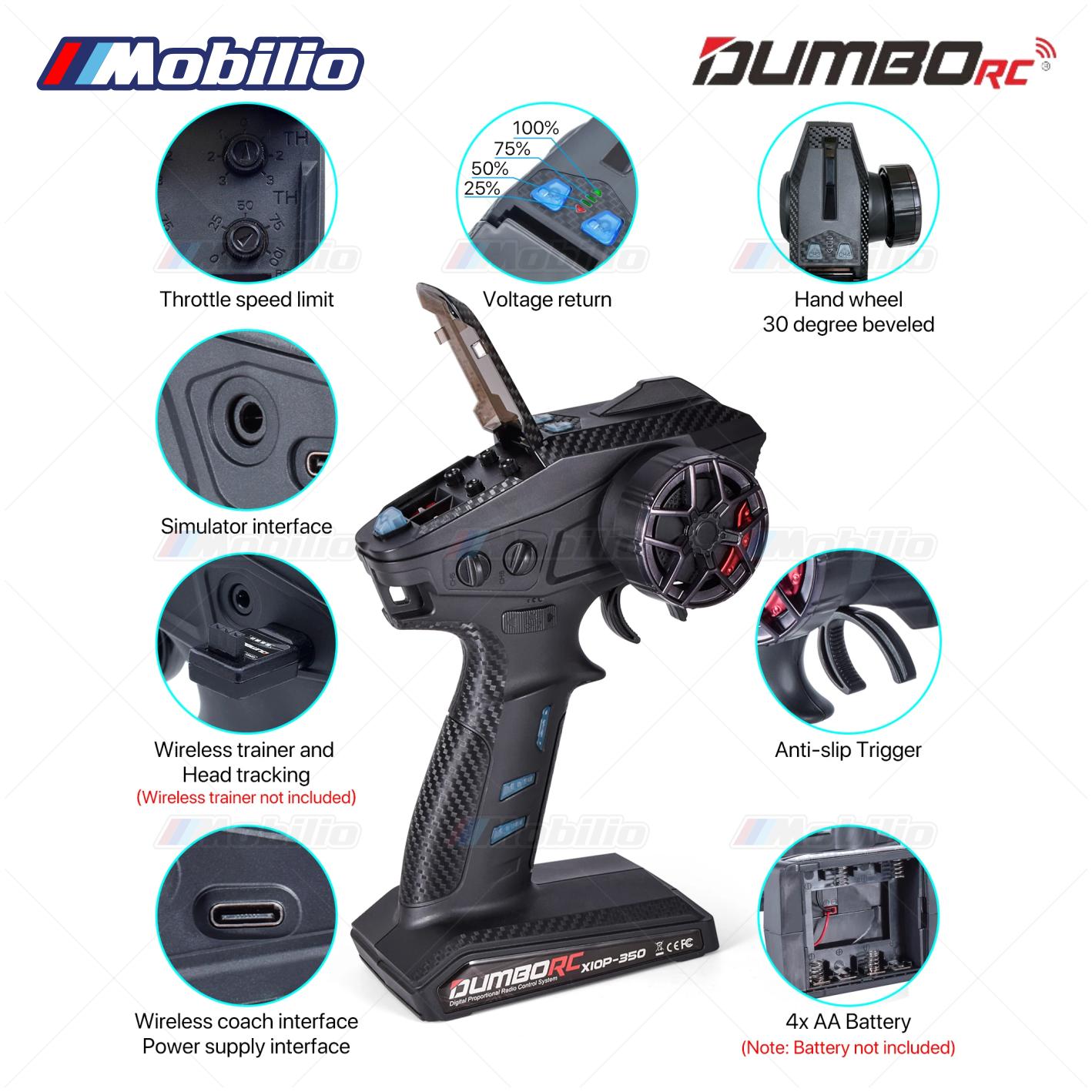

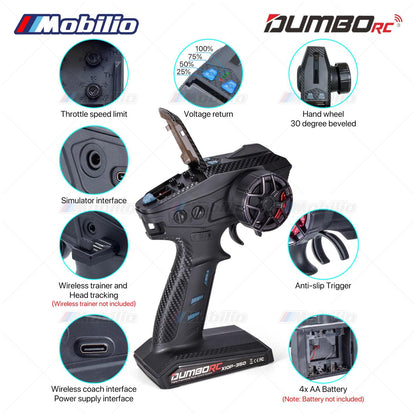

- The unique throttle speed limit adjustment function allows beginners to practice quickly and at a safe speed;
- Debugging channels 3 and 4 can observe the servo changes, and you can set the channel you need when entering the setting mode, and the others remain unchanged;
- After accidentally entering the settings mode, it will automatically exit in 5 seconds, and the memory will not lost, and the subsequent control can still be normal;
- Transmitter voltage range: 4.8-12V, with automatic voltage identification alarmin 3 segments, low voltage alarm 4.4V|7.4V|10.8V
- Receiver voltage range: 4.8-10V, operating current 30mA ,support work with high voltage servo;
- Equipped with a voltage return receiver(optional) ,it supports return the vehicle's battery voltage;
- Cost-effective, with brakes and fail-safe protection function, suitable for cars, boats, and tanks
- There will be flashing music when switching on and off, automatic power off and alarm after 12 minutes, switching off after 15 minutes with no current;

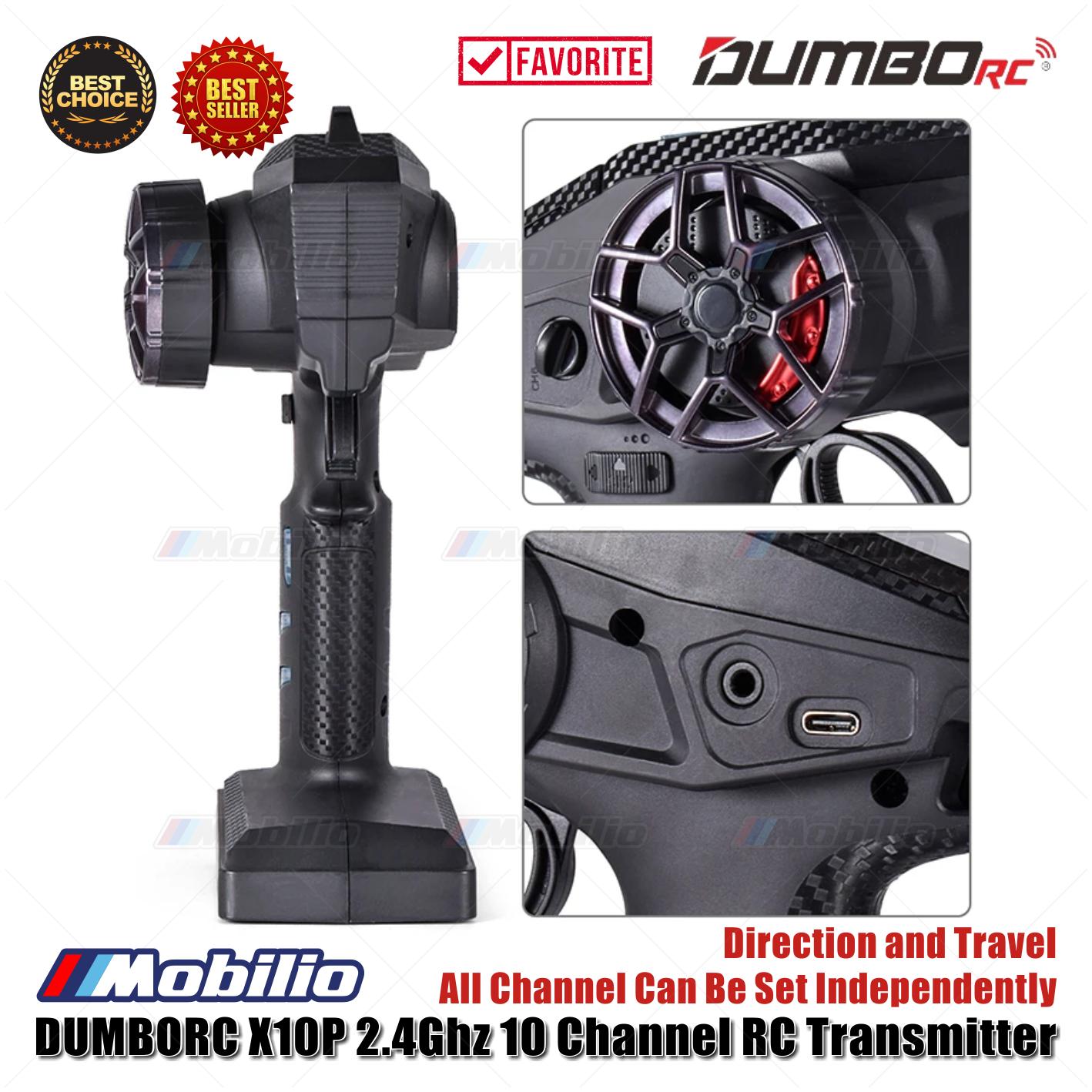

- Ergonomicallu design with 30-degree beveled steering wheel and optional installation of one-handed accessories;
- Receiver with coach interface (Purchase wireless trainer moduleseparately).

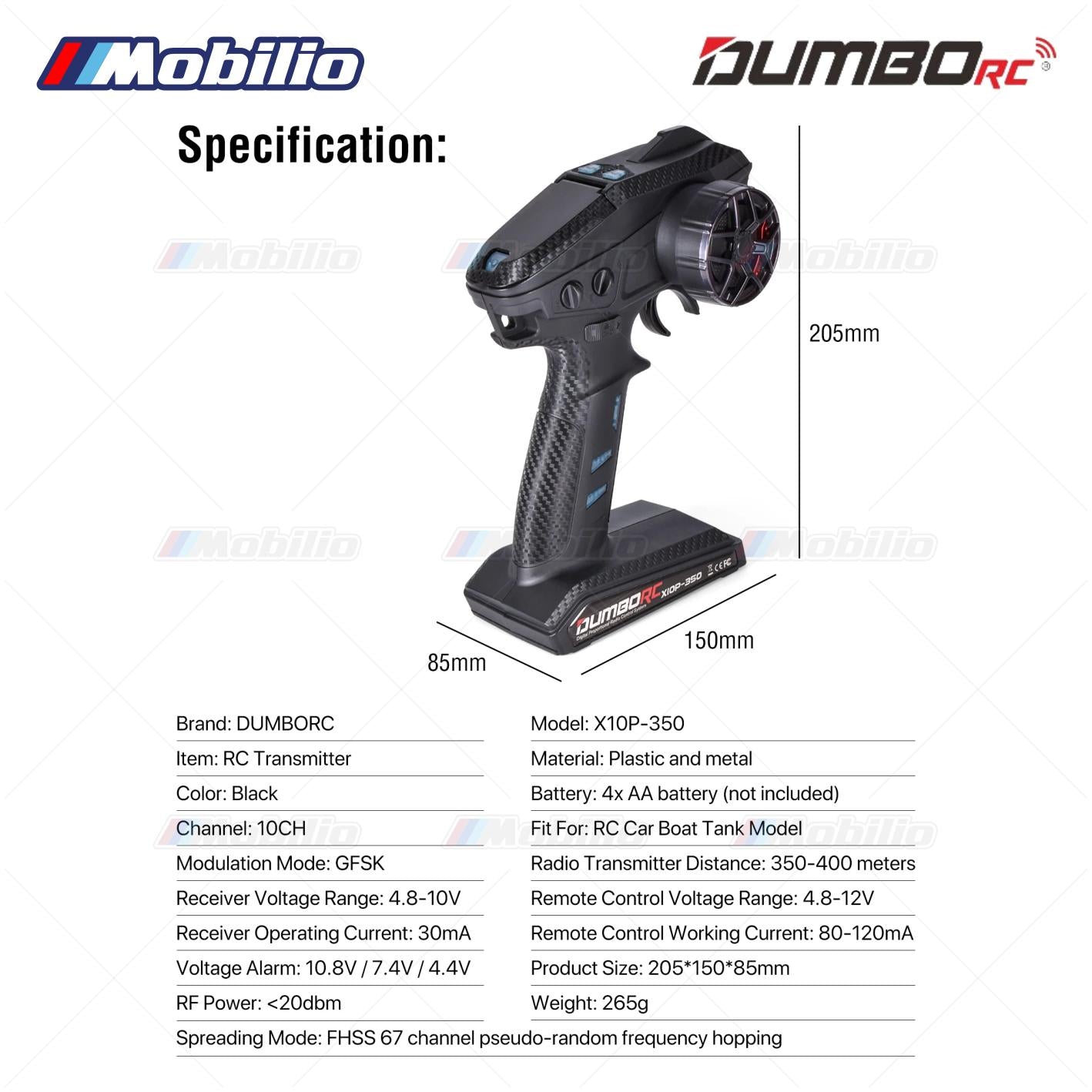

Specifications :
- Brand : DUMBORC
- Model : X10P-350
- Material : Plastic and metal
- Channel : 10CH
- Color : Black

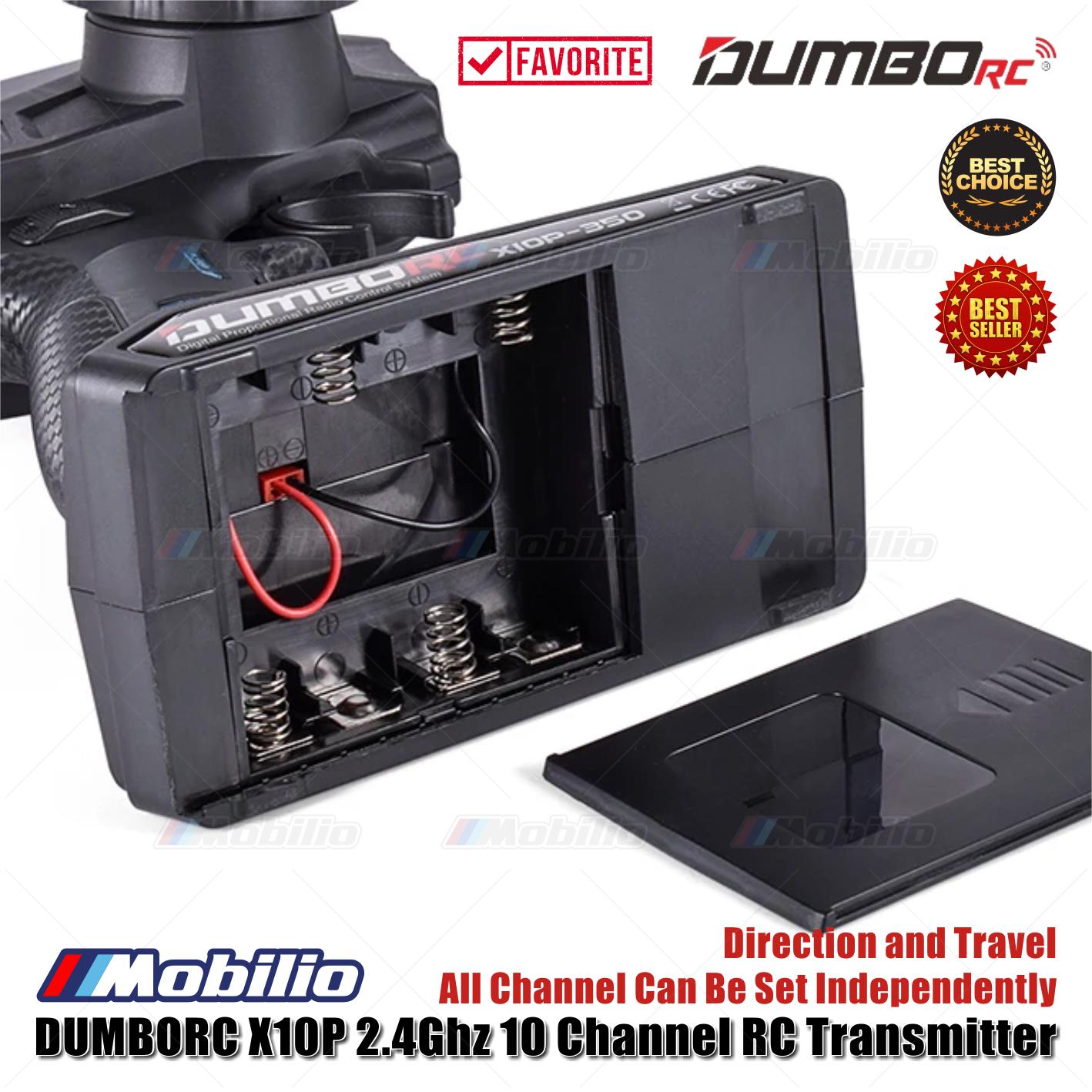

- Battery : 4x AA battery (not included)
- Fit For : RC Car Boat Tank Model
- Modulation Mode : GFSK
- Spreading Mode : FHSS 67 channel pseudo-random frequency hopping
- Radio Transmitter Distance : 350-400 meters
- Remote Control Voltage Range : 4.8-12V
- Remote Control Working Current : 80-120mA
- Receiver Voltage Range : 4.8-10V
- Receiver Operating Current : 30mA
- RF Power :
- Voltage Alarm : 10.8V|7.4V|4.4V
- Product Size : 205*150*85mm
- Weight : 265g

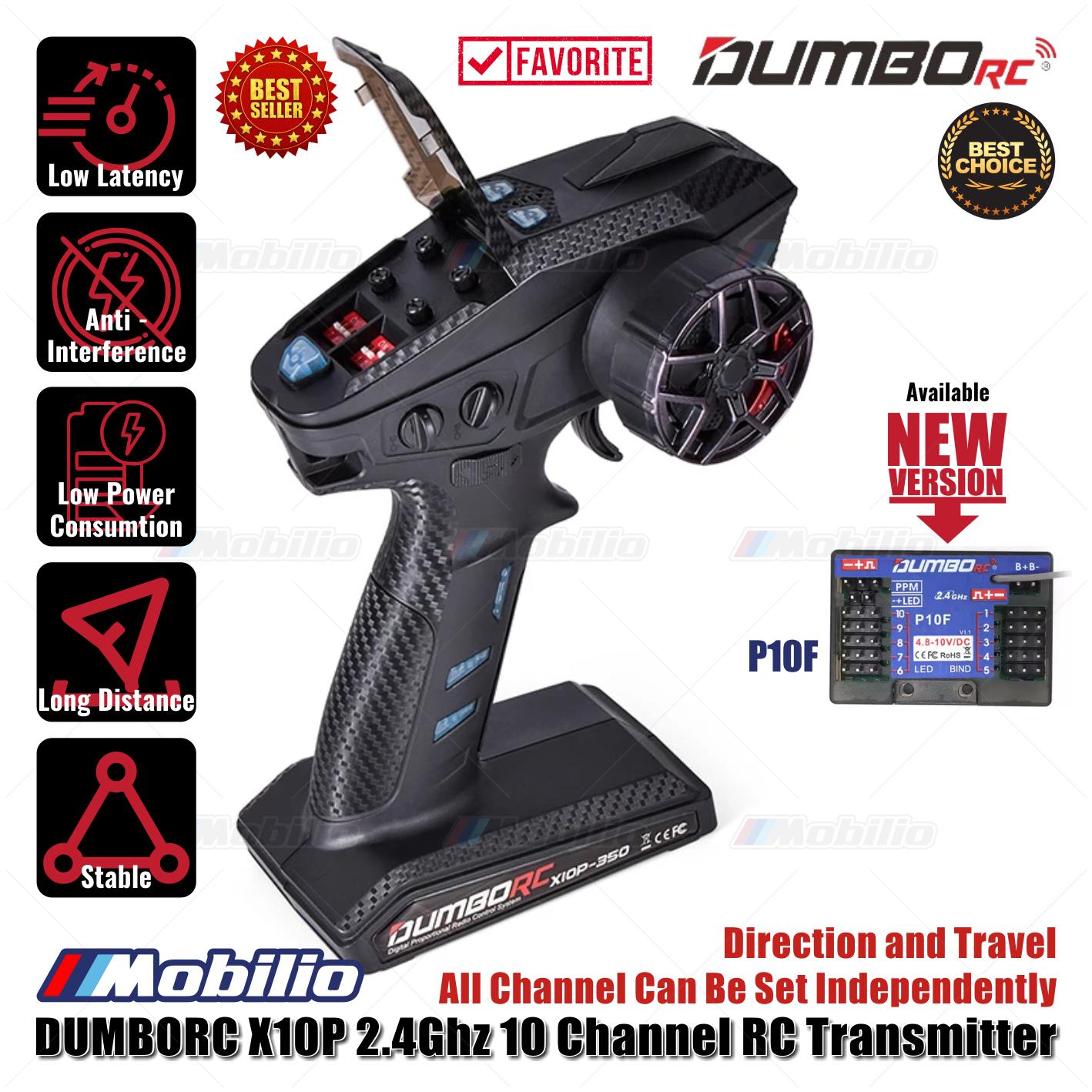

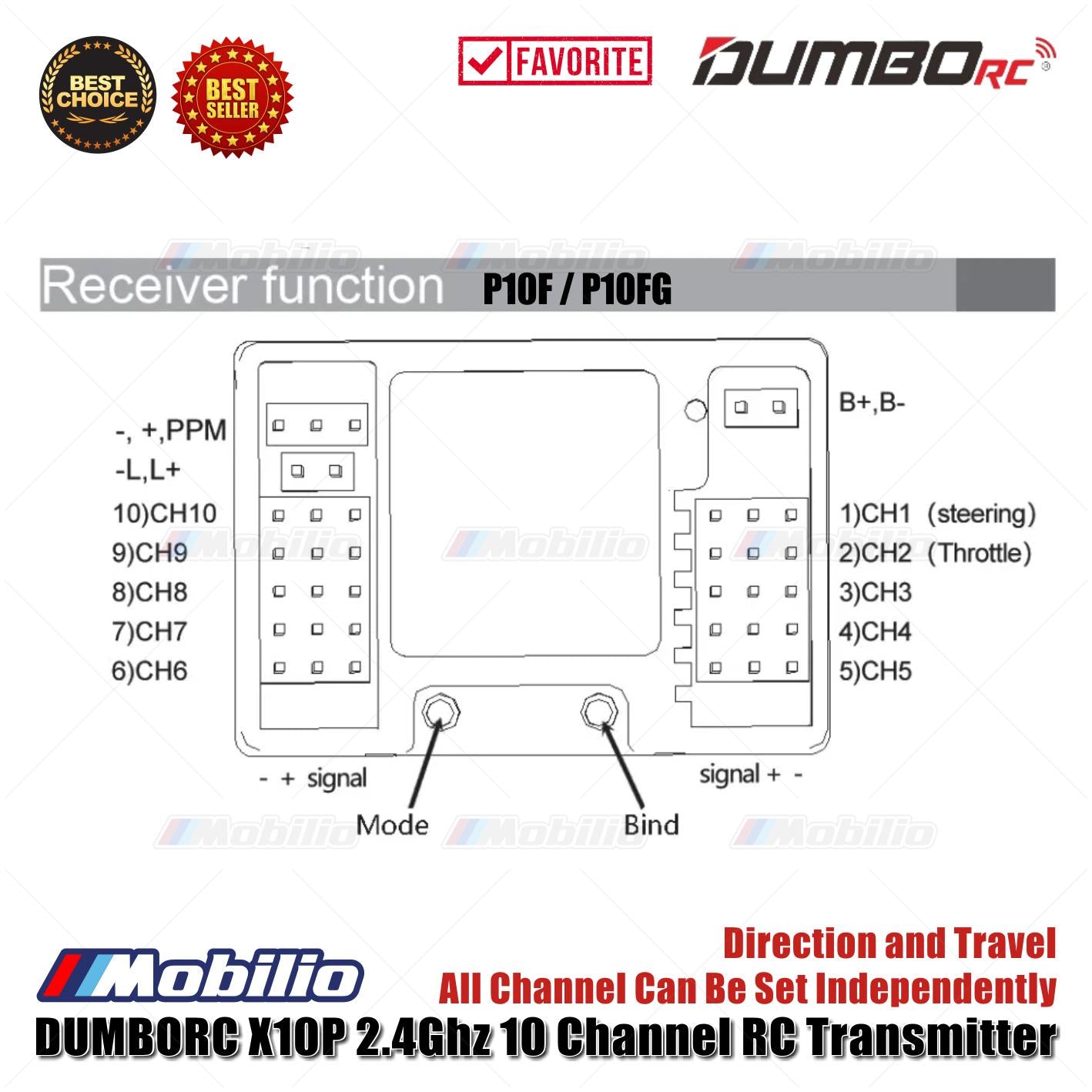

Specifications Receiver P10F/P10FG :
- Brand : DUMBORC
- Model : P10F/P10FG
- Channel : 10CH
- Receiver Voltage Range : 4.8-10V
- Receiver Operating Current : 30mA@5V
- Remote control distance : 350-400 meters
- Output signal : PWM
- Modulation Mode : GFSK
- Spreading Mode : FHSS 67 channel pseudo-random frequency hopping
- Light control function : Support for controlling lights in any channel
- Extended functions : PPM output, voltage feedback
- Product Size : 40*35*13mm
- Weight : 12g
- Compatible remote control : All remote controls for DUMBORC
- Fit For : RC Car Boat Tank Model
- Note : No gyro function/ Gyro function included.
P6DC :
- Brand : DumboRC
- Model : P6DC
- Material : Plastic + Electronic Components
- Color : Black
- Suitable for : Car/Boat/Tank
- Channel : 6CH
- Modulation Mode : GFSK
- Spread Spectrum : FHSS
- Control Distance : More than 400 meters
- Receiver Voltage Range : 3.3-10V
- Receiver Operating Current : 30mA
- Support HV servo, and maximum servo voltage is 10V.
- With LED lamp control interface
- This receiver integrates the lamp group, and not using Y wires getting singals of CH1 and CH2 as traditional wiring method.
- Support Transmitter : X4 X5 X6 X6P
- Note : No gyro function
- Weight: 9g
Packages :
1x Dumborc X10P-350 10 Channel 2.4GHZ Transmitter

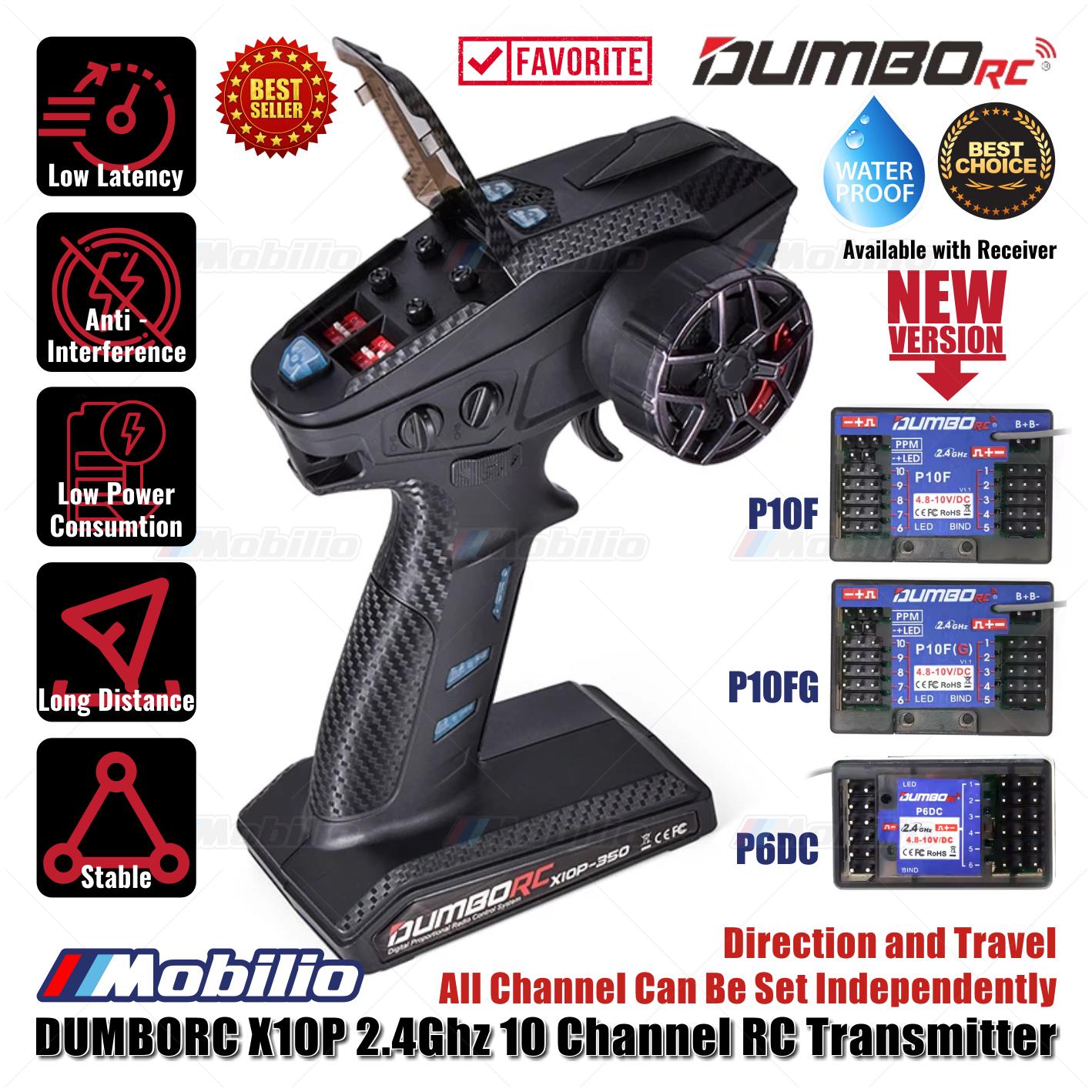

1x Receiver P10F / P10FG / P6DC
For waterproof receivers, you can choose the WP variant.
Contact our customer service if you need more information.
