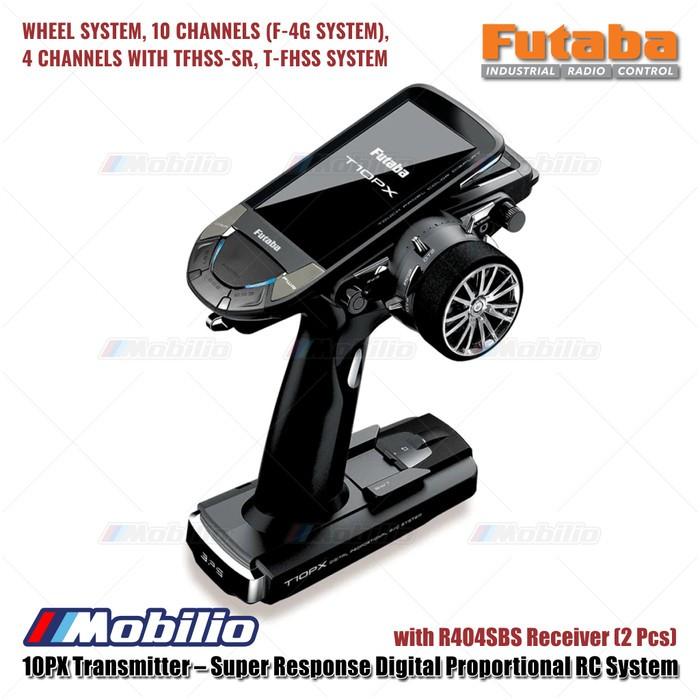

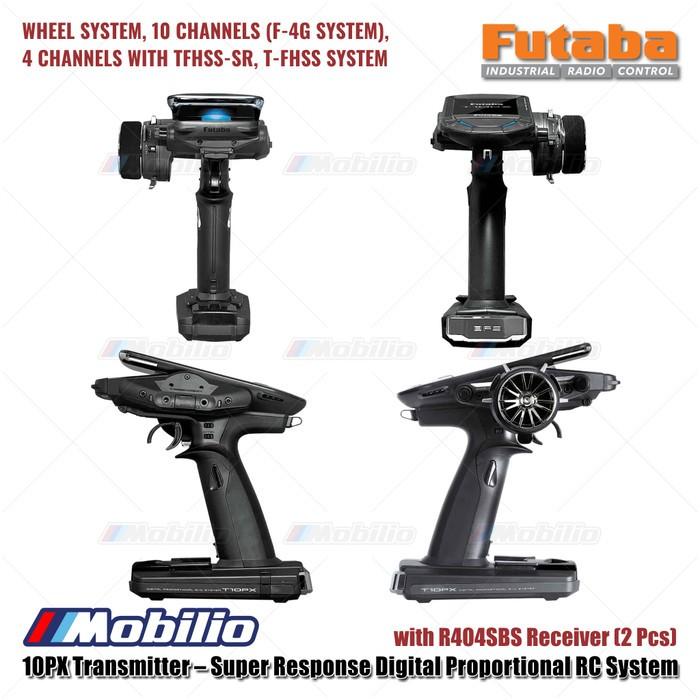

Futaba 10PX Transmitter Super Response Digital Proportional RC System 10-Channel #FP-10PX-R404 with R404SBS Receiver

10PX Transmitter – Super Response Digital Proportional RC System

10PX FEATURES :

- Full color touch screen LCD

- F-4G system & telemetry

- 10 channels

- T-FHSS MINIZ system

- Update-able software

- Model memory for 40 models

- Paddle switch + bottom switch + 3 position switch

- LiPo battery can be used

- Brake mixing for large cars

- Steering mixing

- 4WS mixing for crawlers and other 4WS type

- Dual ESCs mixing for crawlers

- Gyro mixing

- Tank mixing

- CPS mixing

- S.BUS servo

- MC-Link

- Throttle speed

- Steering speed

- Non-telemetry LED

- Dial select function

- Switch select function

- Wheel & Trigger position can be changed

- Rubber Grip

- Trim/dial lock functions

- Left-handed support

- Vibrator built into the grip

- USB Port

10PX TRANSMITTER SPECS :

WHEEL SYSTEM, 10 CHANNELS (F-4G SYSTEM), 4 CHANNELS WITH TFHSS-SR, T-FHSS SYSTEM

- TRANSMITTING FREQUENCIES : 2.4 GHz band/ -Transmitting RF power output: 100mW EIRP

- PROTOCOLS : T-FHSS-SR/T-FHSS/S-FHSS/F-4G

- POWER REQUIREMENT: LiPo – NLF2F2000B (7.4 V) / LiFe – FT2F1700BV2 (6.6 V)

- CURRENT DRAIN: 350 mA or less (When the T-FHSS, Vibration off, back lighting on)

- TRANSMITTING ANTENNA: 1/2λ dipole

- 4.3 INCH BACKLIT COLOR TFT LIQUID CRYSTAL TOUCH PANEL*

*When you turn on your 10PX, bright dots may appear on your screen display. Your display contains an extremely large number of TFT and is manufactured using high-precision technology. Any bright dots that may appear on your display are intrinsic of the TFT manufacturing technology.

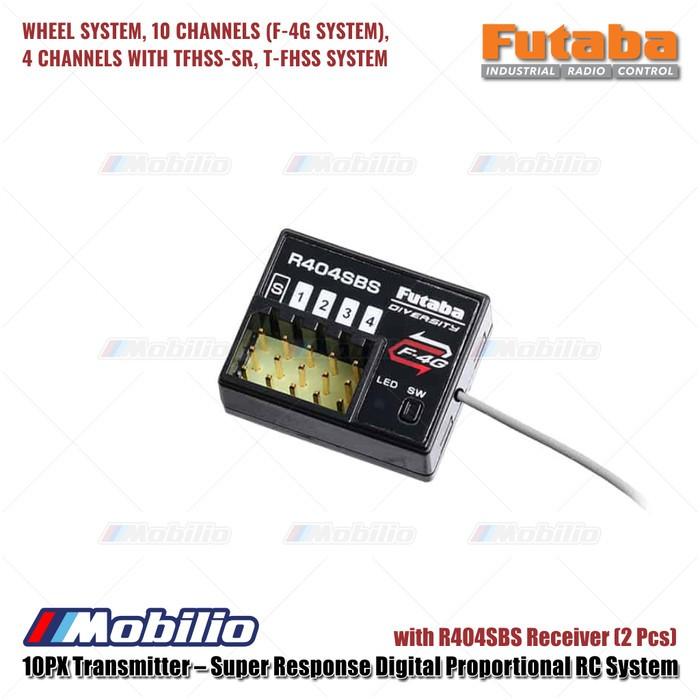

RECEIVER SPECS R404SBS :

- F-4G

- SIZE: 1.00×0.81×0.42 inch / 25.5×20.7×10.6 mm

- WEIGHT: 5.7 g / 0.2 oz.

- OPERATING VOLTAGE: DC 3.7-8.4V

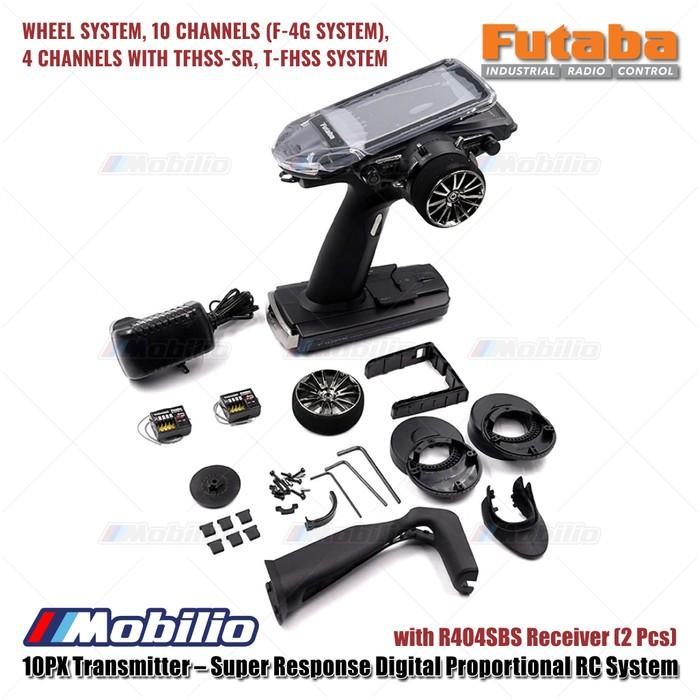

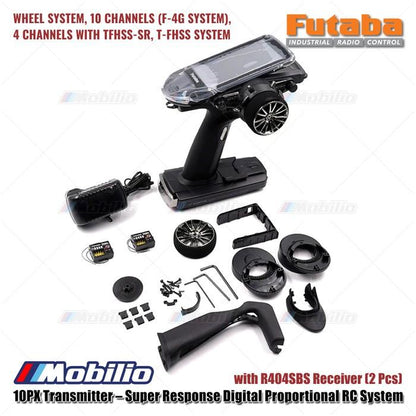

Package Includes :

- T10PX Transmitter

- R404SBS Receiver (2 Pcs)

- Dry Battery Holder

- Wheel offset adapter two size (APA)APA Mounting screws *Spare screws are also included

- Wheel adapter 32 deg.

- Wheel Angle spacer 5 deg.

- Large diameter steering wheel

- Trigger guard (Lx1/Rx1)

- Grip rubber (1 Pcs)

- Blind paddle (2 Pcs)

- Hex wrench

- Short manual
