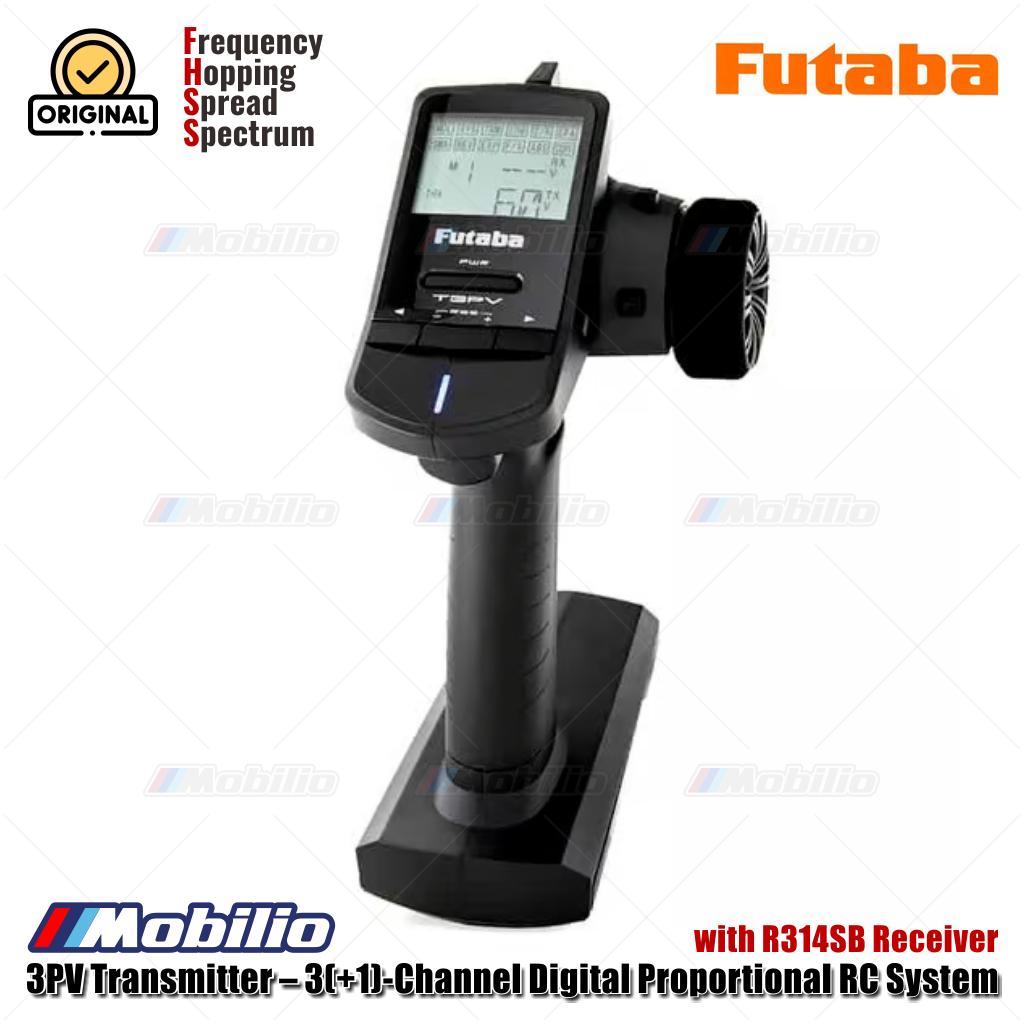

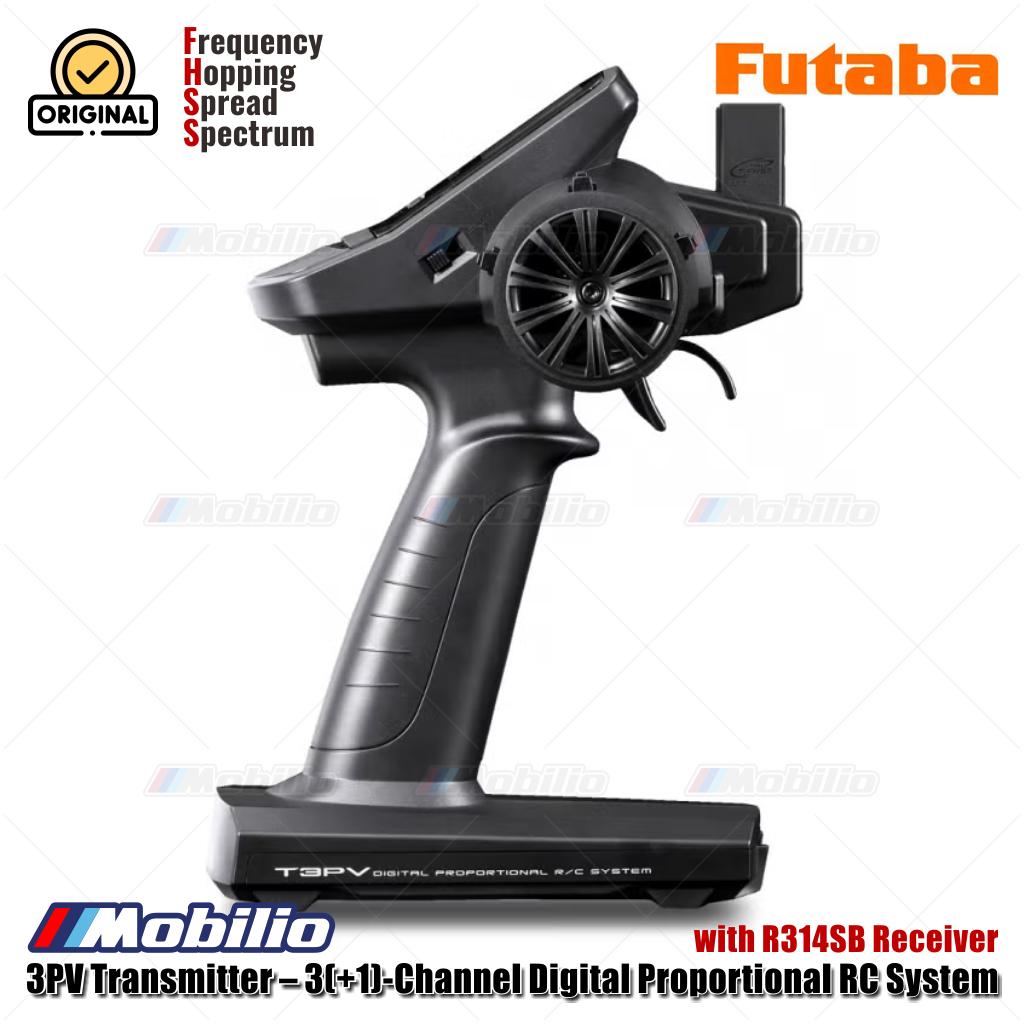

Futaba 3PV Transmitter 3(+1) Channel Digital Proportional RC System

Futaba 3PV Transmitter 3(+1) Channel Digital Proportional RC System

- One of the most versatile surface radio systems ever, with FHSS, S-FHSS and T-FHSS protocols.

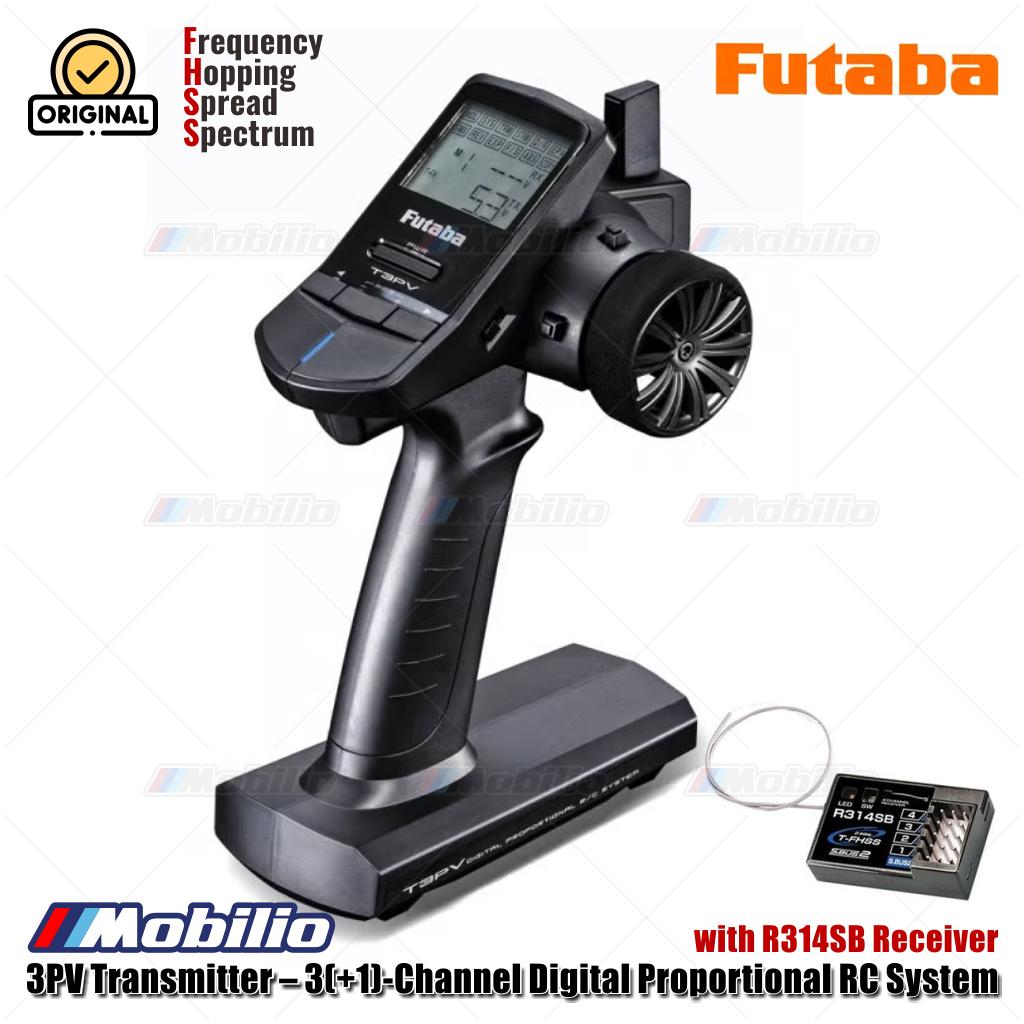

- The included R304SB T-FHSS receiver works with telemetry sensors to keep you apprised of transmitter and receiver voltage while you drive.
- The large screen makes it easy to view information from the 3PV’s intuitive menu.
- Digital trims for Steering, Throttle and Steering Dual Rate are conveniently positioned around the wheel for easy access.

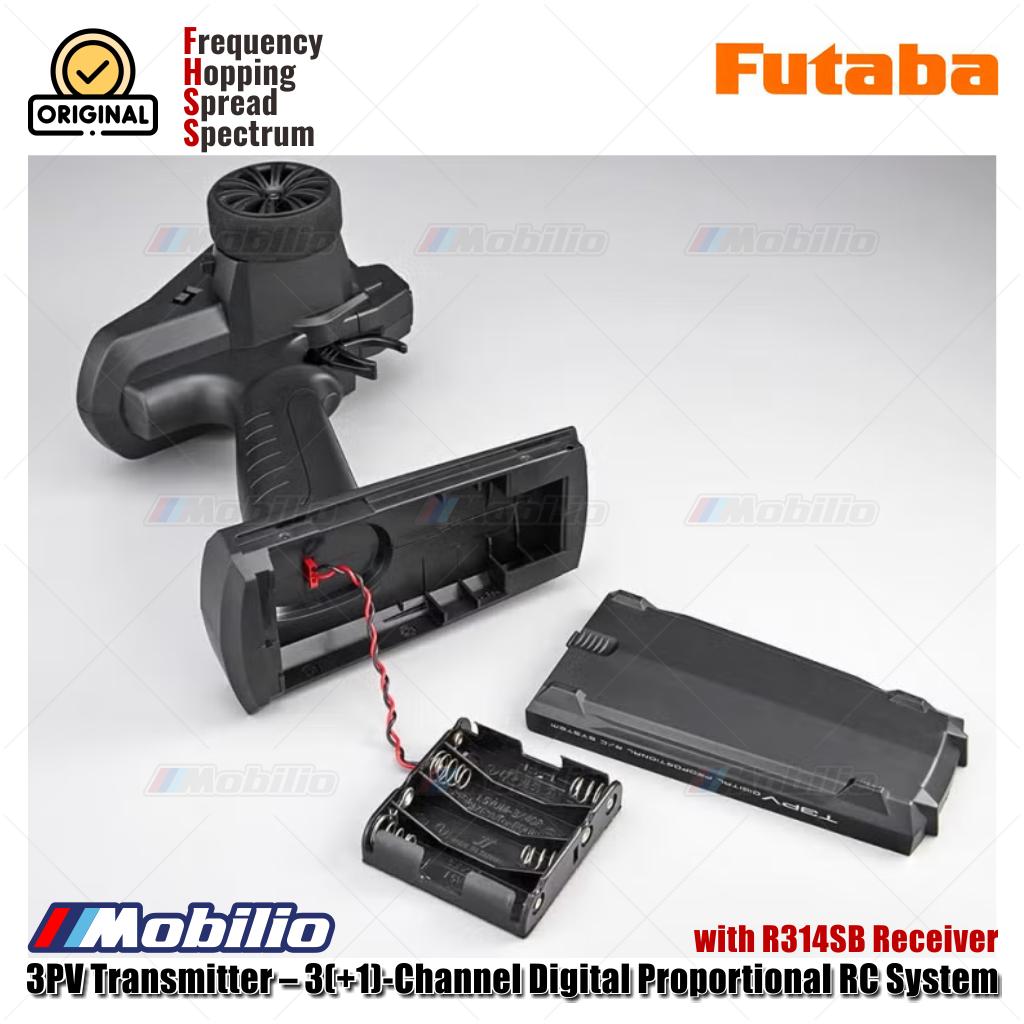

- The battery compartment in the transmitter’s base can hold 4 “AA” alkaline batteries, Nickel-Metal Hydrides or a lithium pack; batteries not included.

Once you discover everything the 3PV is capable of, you'll realize that this radio can make a real difference on race day. Response rates are super-fast, programming is very intuitive, the LCD screen is large and easy to see, and the transmitter is lightweight and comfortable to hold. You get FHSS, S-FHSS and T-FHSS protocols, making the 3PV very adaptable. The included R304SB T-FHSS receiver provides telemetry functions for getting real-time updates on transmitter and receiver voltage while you drive - a real bonus for determining run time.

Features :
- FHSS, T-FHSS and S-FHSS protocols
- Large, easy-to-read programming screen
- Four-wheel steering and brake mixing
- Model data copy
- 10-model memory
- 4-character model naming
- Anti-lock brake system (ABS) function
- Link mode (T-FHSS only)
- DT3 selection
- Throttle fail safe
- Steering and throttle trim
- Channel 4 trim
- Sub trim
- Adjustable steering dual rate
- Adjustable steering and throttle end point
- Channel 3 and 4 end point adjustment, and servo reversing
- Steering and throttle exponential
- Auto power off after ten minutes

TRANSMITTER SPECS
- T-FHSS/S-FHSS SYSTEM, WHEEL TYPE, 3+1* CHANNELS *The 4th channel is used for mixing functions only.
- COMMUNICATION METHOD: Two-way (T-FHSS)/One-way(S-FHSS, FHSS) operation system.
- MAXIMUM OPERATING RANGE: 80m (Optimum condition)
- FOR SAFETY: F/S, ID
- TRANSMITTER FREQUENCY: 2.4 GHz band
- POWER REQUIREMENT: Size AA Dry Cell battery x 4 (6 V)
- CURRENT DRAIN: 100 mA or less
- TRANSMISSION ANTENNA: 1/2λ di-pole (Built-in)

RECEIVER SPECS R314SB

- For: 4PLS 4PX 4PXR
- Modulation Method: 2.4GHz
- Color: Black
- Dimensions: 35.1 x 23.2 x 8.5mm
- Weight: 6.6g
- Rated Voltage: DC4.8V-7.4V
- Operating Voltage: DC4.0V-8.4V
