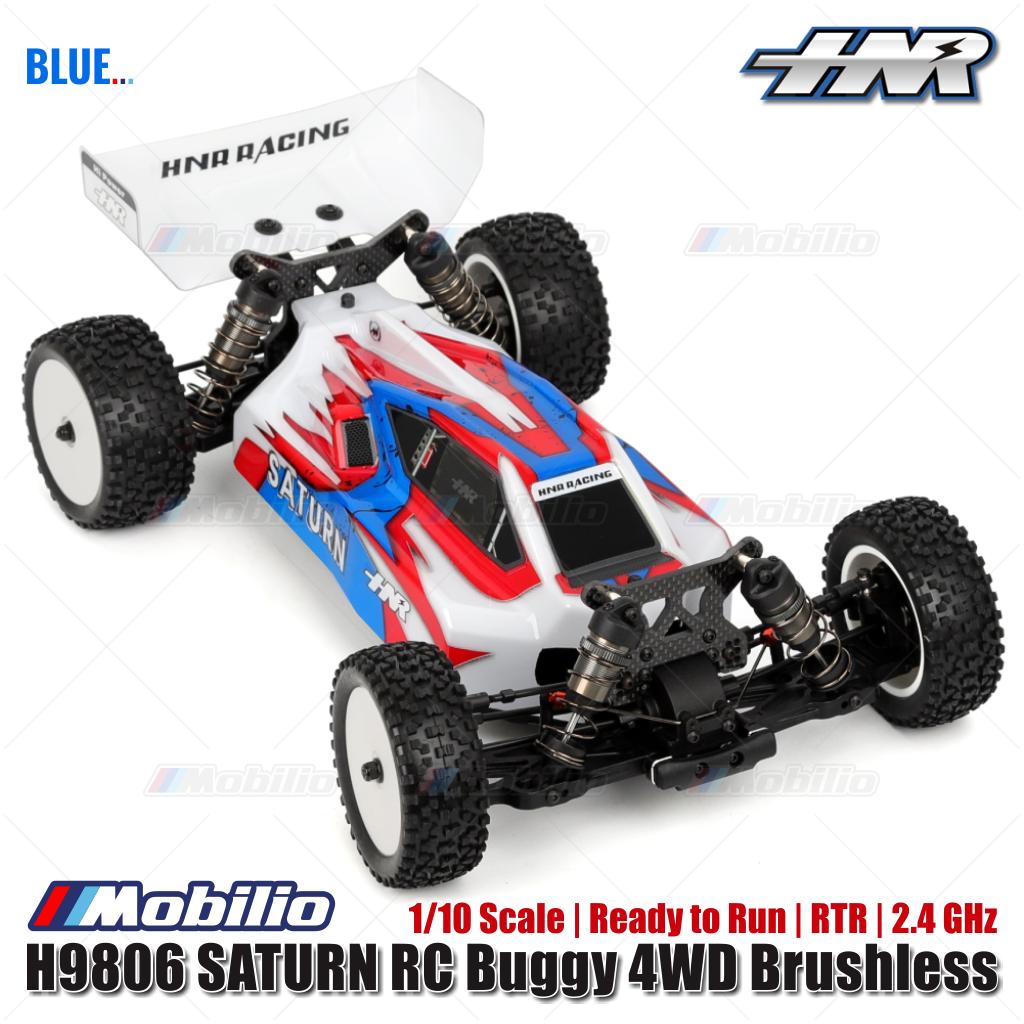

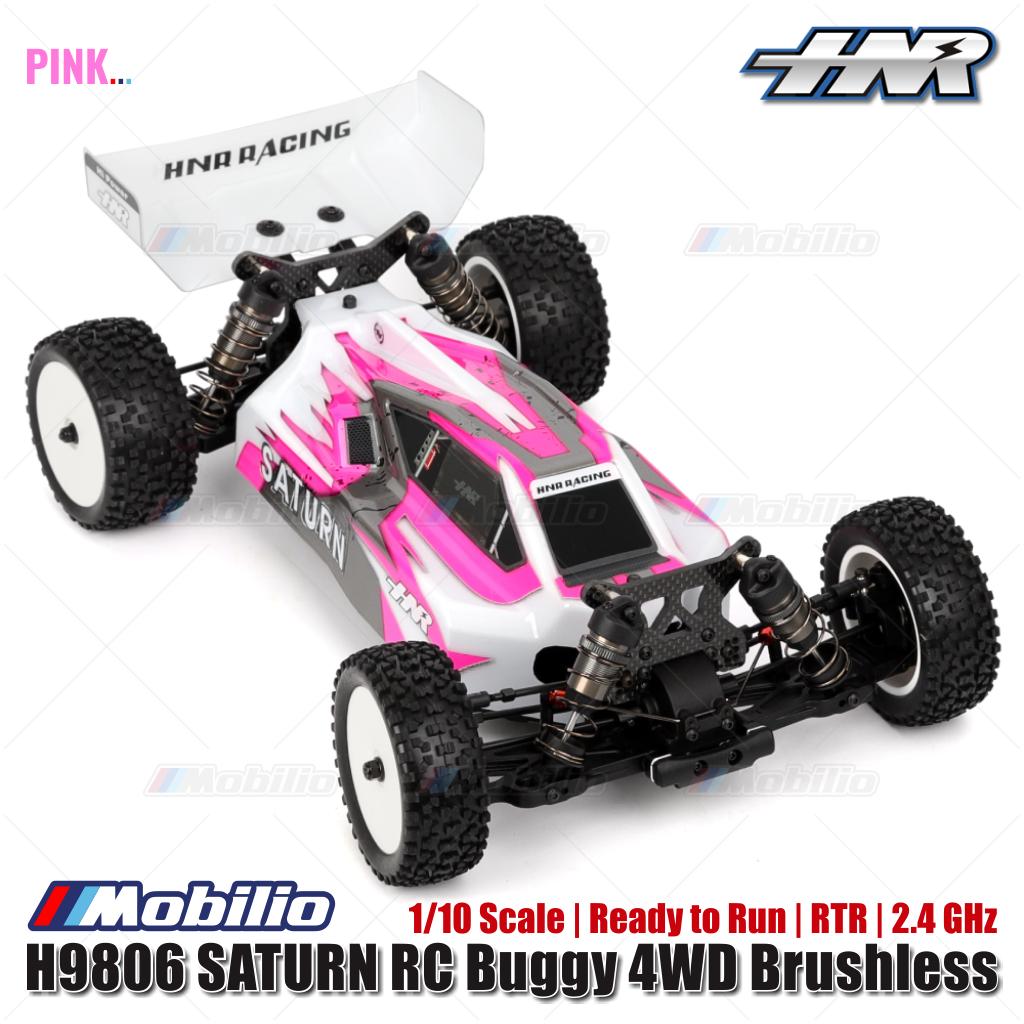

HNR H9806 SATURN RC Buggy 4WD Brushless 1/10 Scale Ready to Run RTR 2.4 GHz

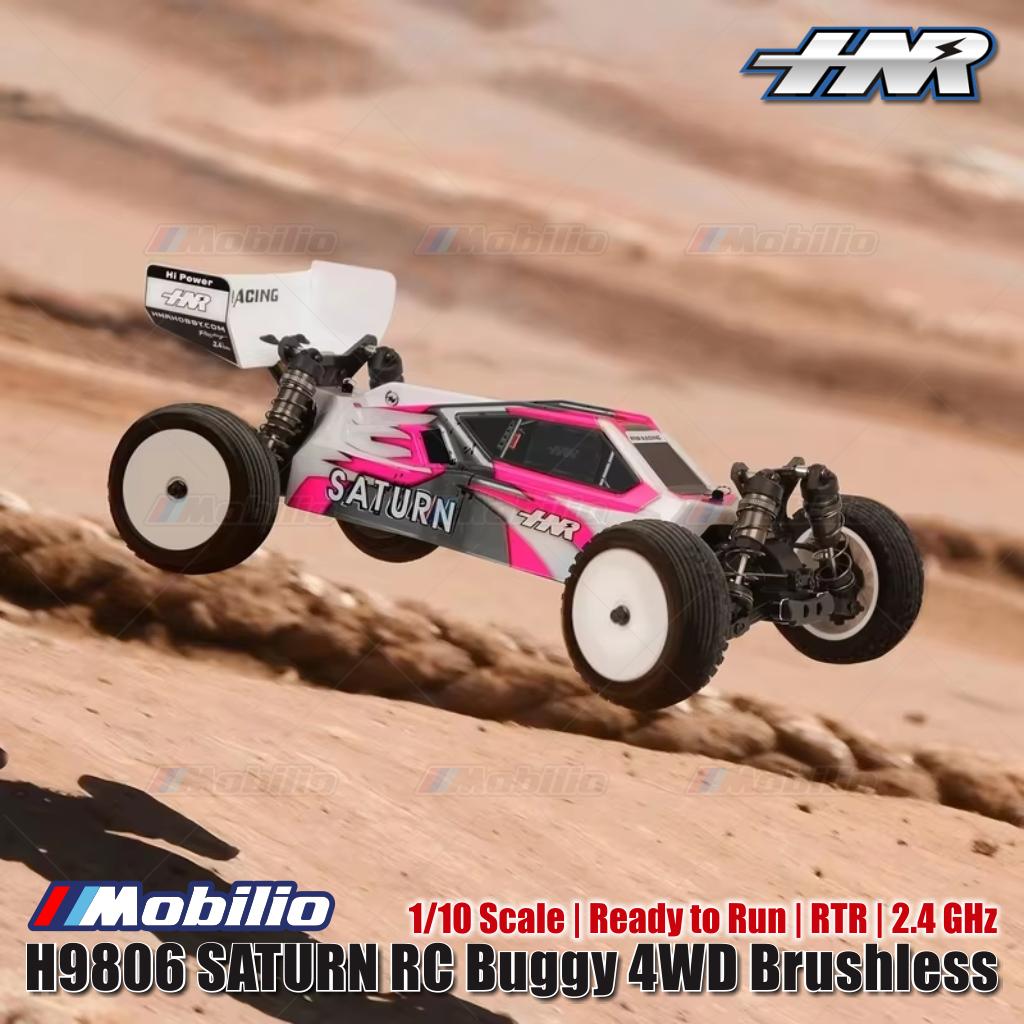

HNR's new 1/10 high-performance brushless electric off-road vehicle, codenamed "SATURN." It is meticulously crafted to meet the standards of professional off-road racing. It comes with a factory-installed remote control and a complete power system (excluding batteries and chargers). The body shell is available in two colors: pink and red-blue.
"Saturn" features a chassis made of 2.5mm thick 7075 aluminum alloy and a carbon fiber shock absorber frame. The entire vehicle is equipped with high-precision ball bearings. The transmission system employs a three-differential design in the front, middle, and rear, with standard anti-roll bars in the front and rear. The frame supports various professional parameter adjustments, making it easy to handle different terrain requirements. Additionally, it is equipped with a quick-release CNC aluminum motor mount, featuring a 3652-4000KV brushless motor and a Haoying 60A brushless electronic speed controller. It is compatible with 2-3S high-density lithium batteries.

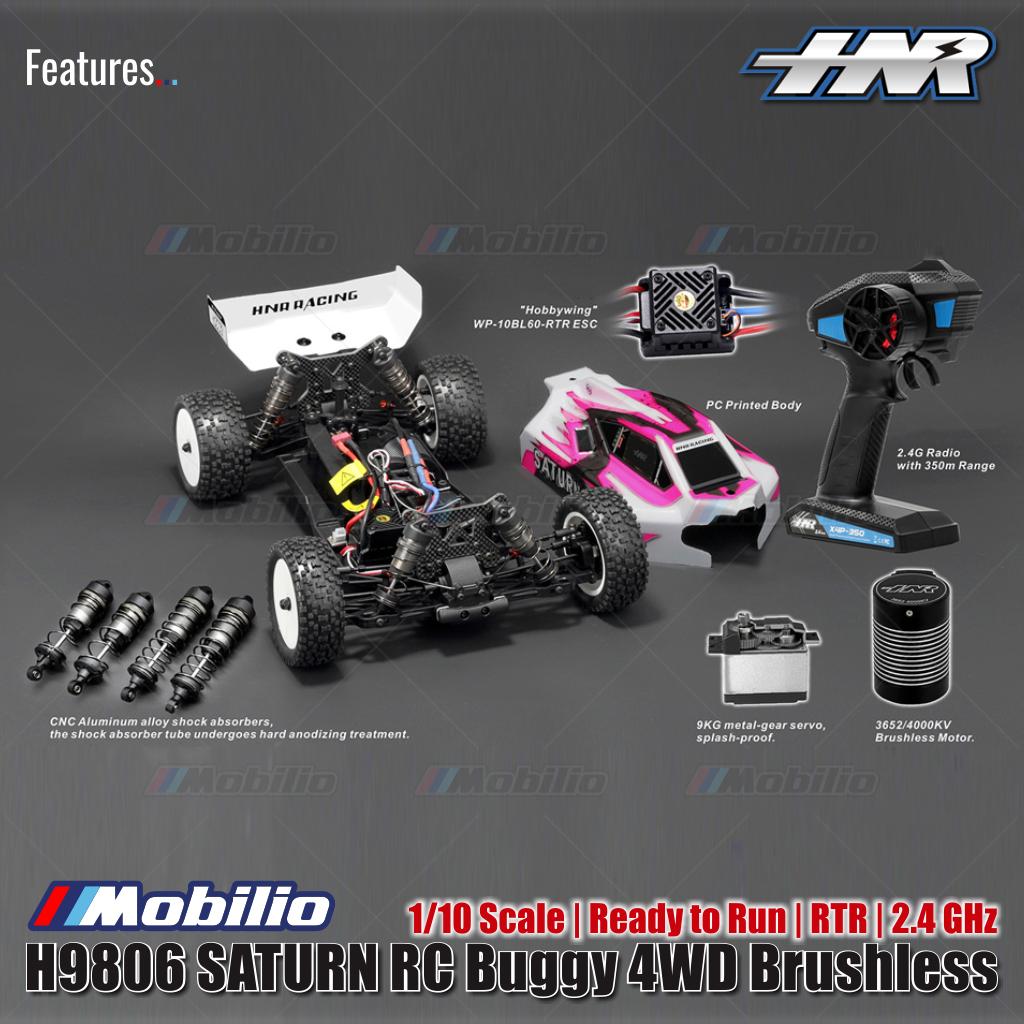

Features :

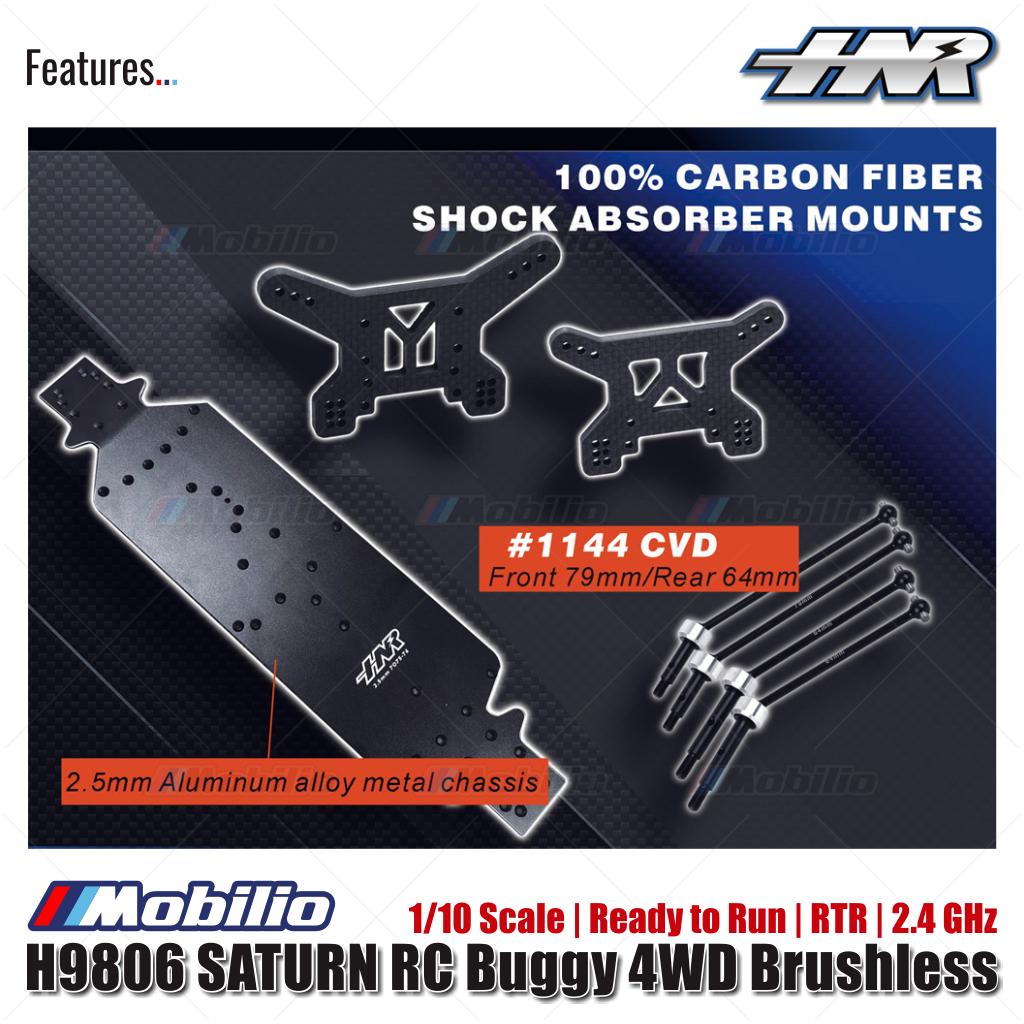

- 7075 Aluminum Alloy Chassis – 2.5mm thick for exceptional strength and rigidity.
- Carbon Fiber Shock Towers – Reduce weight and enhance shock absorption.

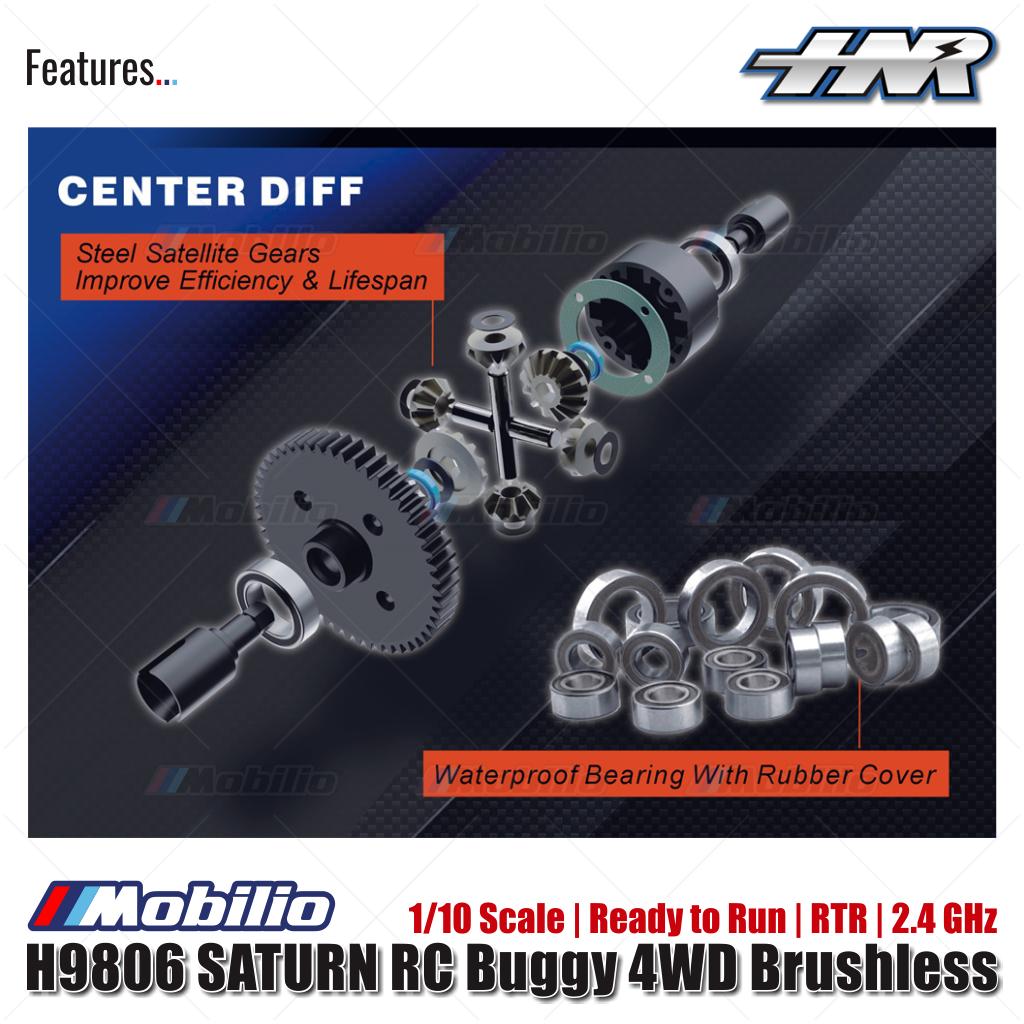

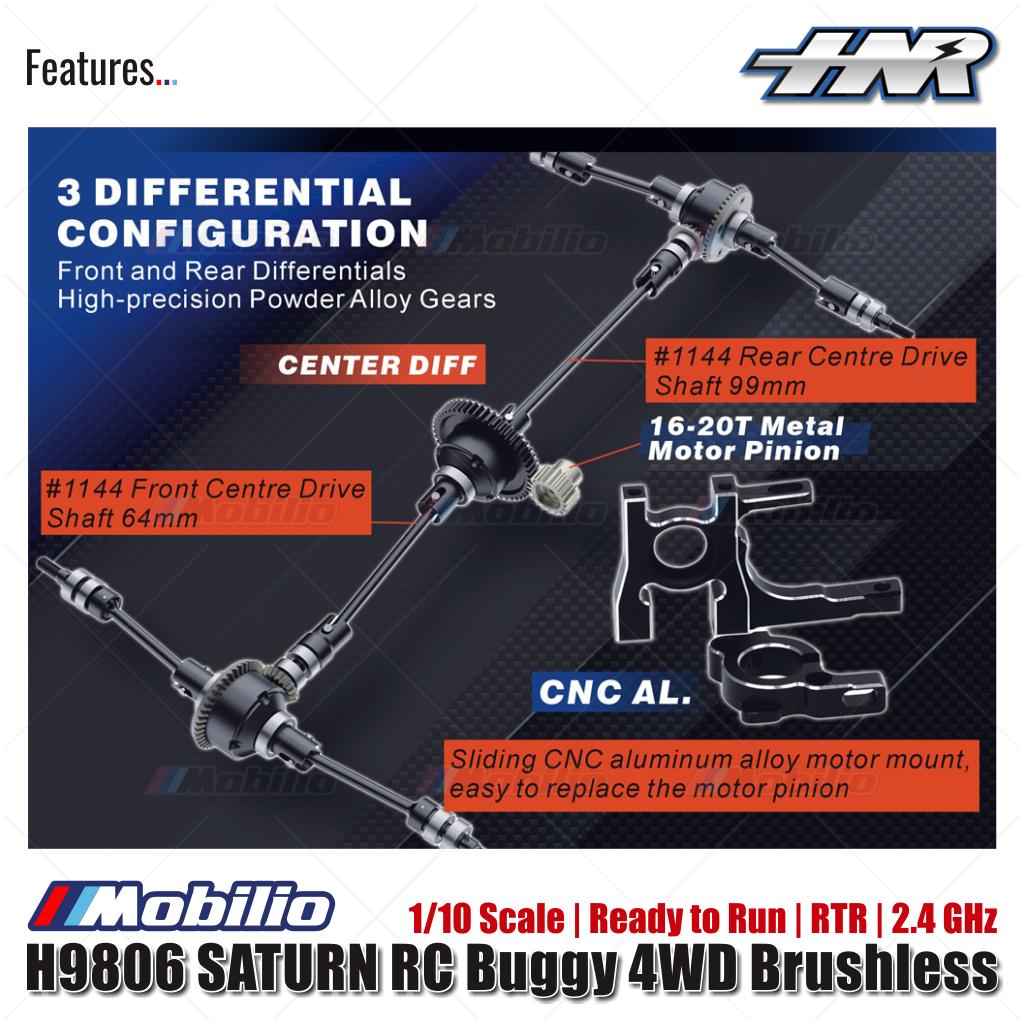

- Front, Center, and Rear Differential Design – Improves handling and power distribution.

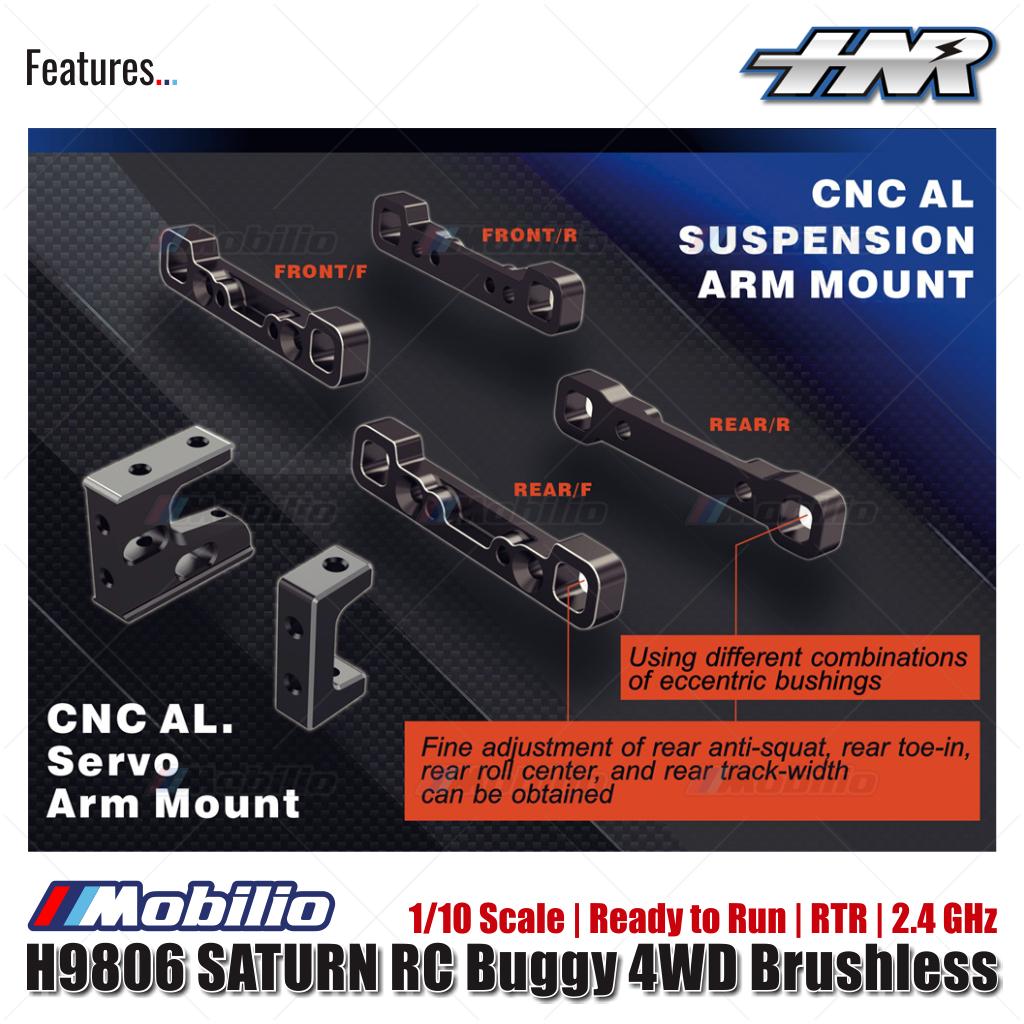

- Adjustable Suspension Links – Fully tunable setup with anti-roll bars for different track conditions.
- CNC Aluminum Alloy Motor Mount – Sliding design for easy pinion gear replacement.
- CNC Aluminum Shock Absorbers – Hard anodized finish with large-capacity dampers for superior off-road control.
- Hobbywing WP-10BL60-RTR ESC – 60A waterproof ESC with 7.4V BEC output, multiple safety protections, and cooling fan.
- 3652/4000KV Brushless Motor – Provides strong torque, smooth linear power, and high efficiency.
- 9KG Digital Metal Gear Servo – Fast, precise steering with splash-proof aluminum case.
- #1144 Material CVD Shafts – Maintain superior power transmission and durability.
Basic information
- Brand : HNR
- Item No : H9806 SATURN
- Scale : 1/10
- Color : Blue/pink/kit
- Design Speed : 2s 40mph(65km/h+),3s 55mph(90km/h+)
Power System
- ESC : Hobbywing 60A WP-10BL60-RTR brushless esc
- Motor : HNR 3652SL 4000kv brushless motor
- Servo : 9kg digital metal gear splashproof steering servo
Transmitter
- Frequency : 2.4G
- Channel : 4CH
- Remote Distance : ≦200m
- Required Battery : 4X 1.5V AA battery(not included)
Battery
- Not Included
- Recommended Battery : 2-3s Lipo battery(not included),such as 7.4v 3500mAh Lipo
Others
- Material : Plastic,hardware,steel and rubber
- Car Weight : About 1600g(without battery)
- Gear Ratio : 8.7:1
- Number of Differentials : With center diff. design, 3P
- Body Shell Type : PC printed body
Dimension
- Car Size : 385*250*146mm
- Wheelbase : 285mm
- Ground Clearance : 20-25mm
- Wheel(Diameter/Width) : 85*32mm(F),88*40mm(R)
- Battery Compartment Size : - Box Size : 540*275*165mm
Package Included :
1x RC Car(do not have battery and charger)
1x Remote Controller
1x Instruction Manual

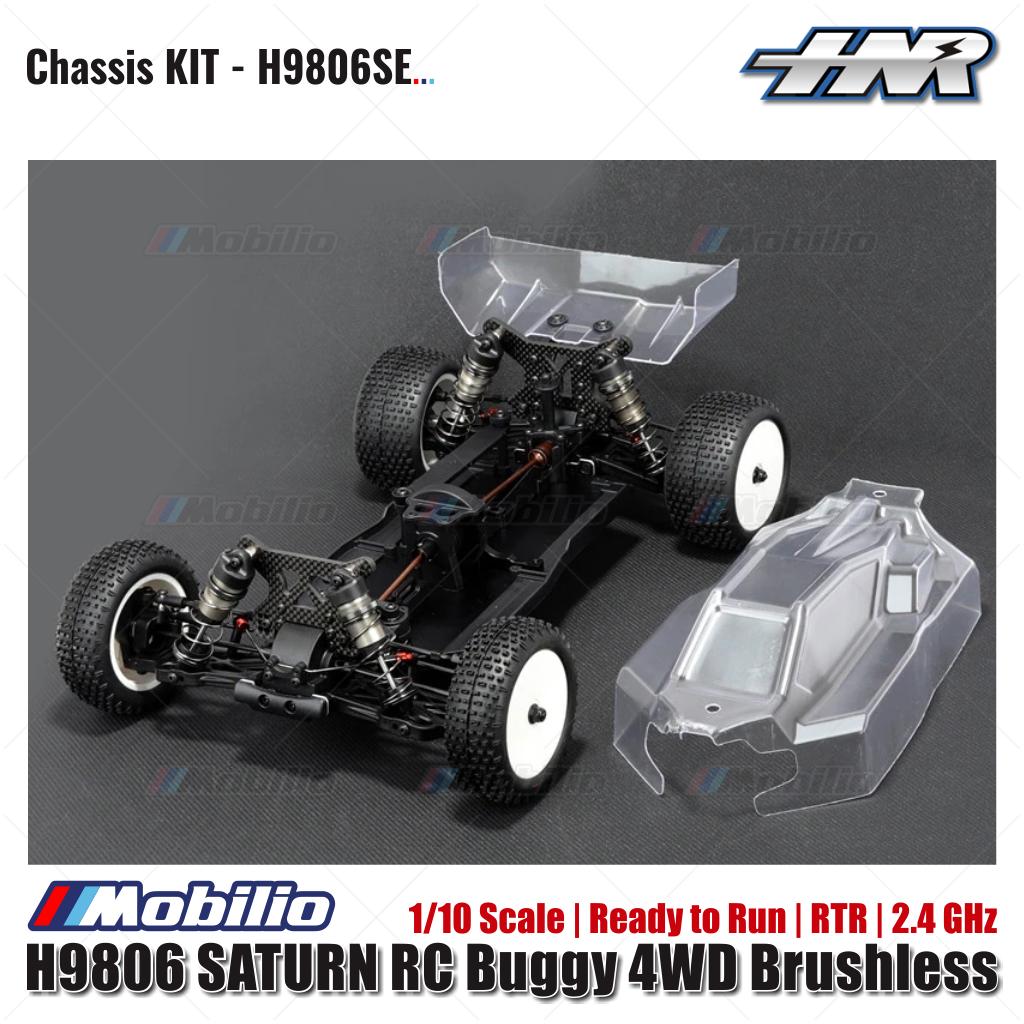

*KIT version H9806SE - does not include electronic parts
Contact our customer service if you need more information.
