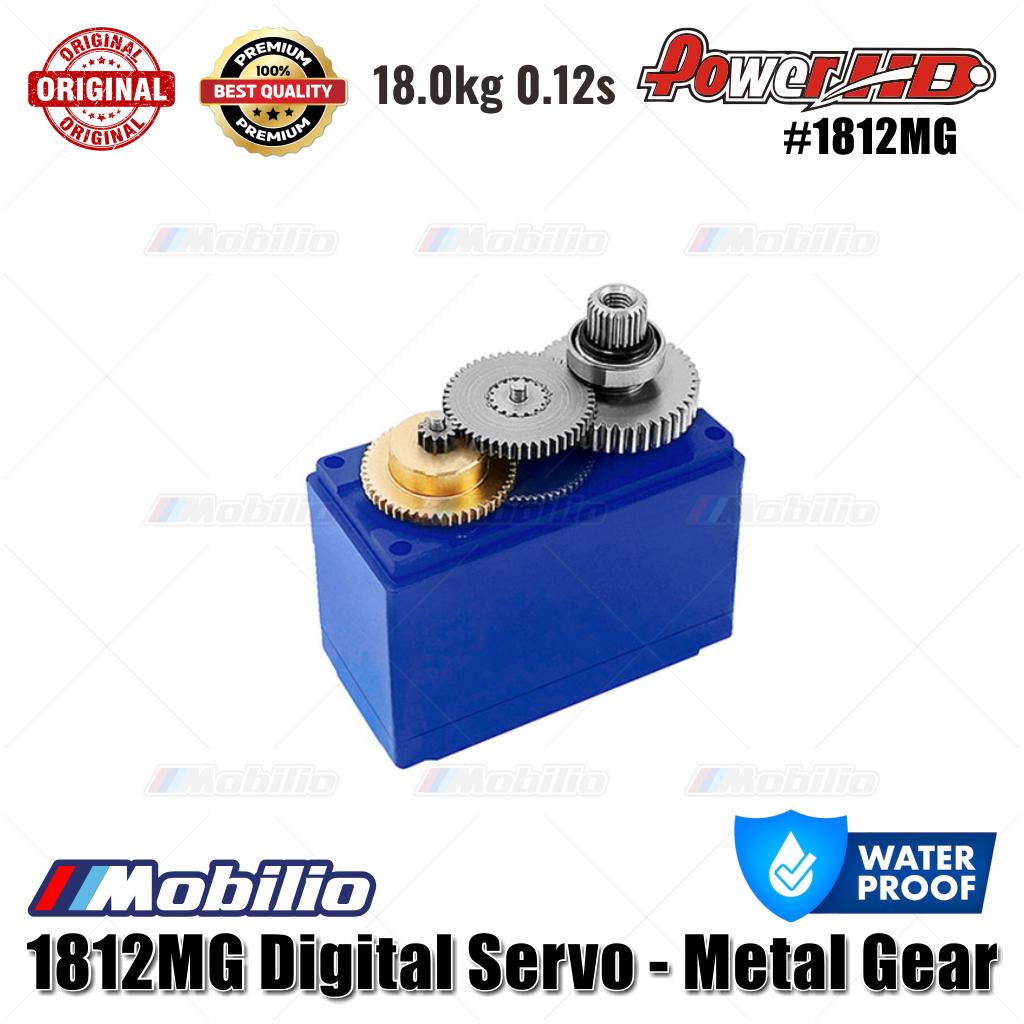

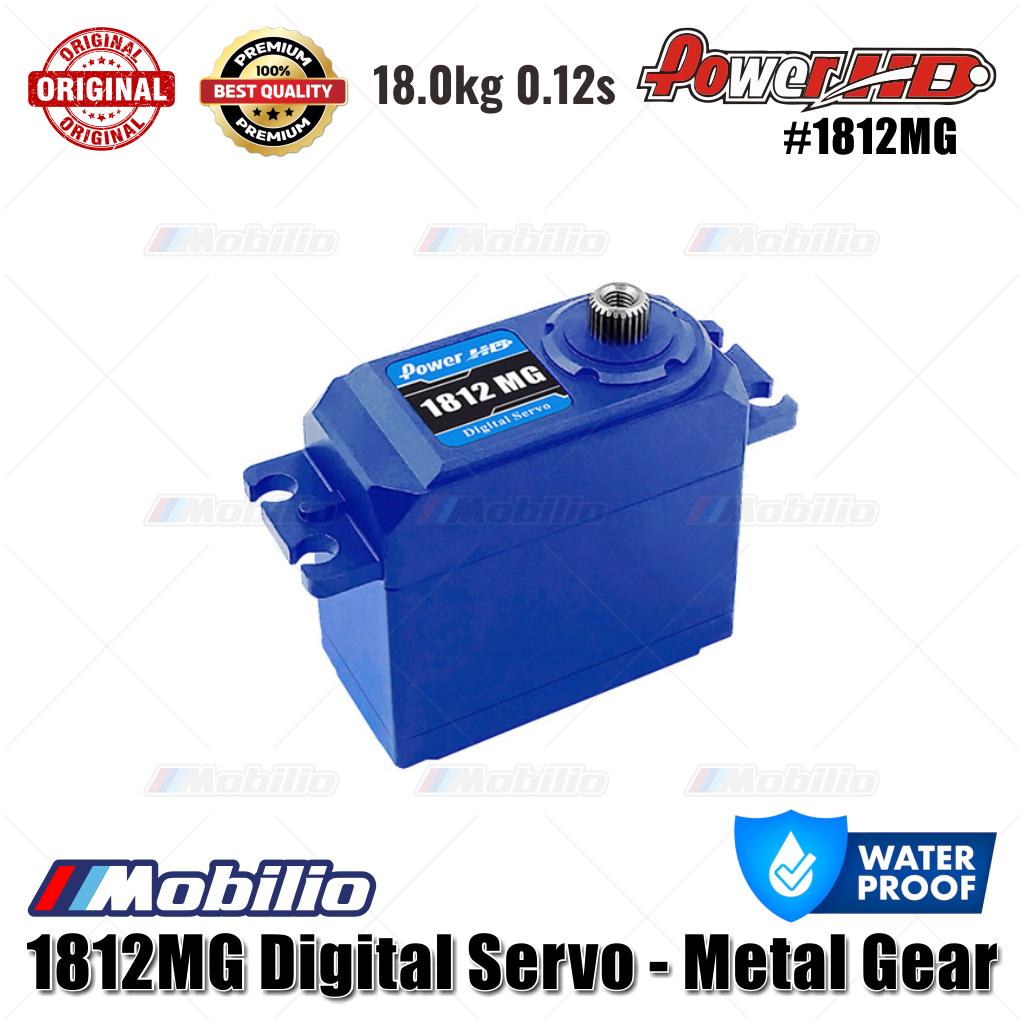

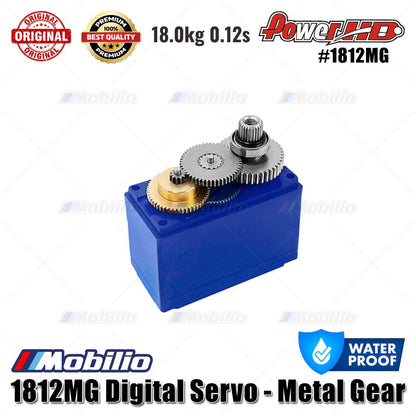

Power HD 1812MG Waterproof Digital Servo Metal Gear - 18.0KG - 0.12sec
The Power HD 1812MG (HD-1812MG) is a waterproof, metal-geared RC servo offering a strong balance of torque and speed for demanding applications. Delivering up to 18kg-cm of torque at 6.0V with a swift 0.12s transit time, it pairs durable copper and aluminium gears with dual ball bearings and a dependable DC motor. Its 4.8–6.0V operating range and compact dimensions make it a versatile choice where reliable performance is essential.
Key Specifications
- Torque (4.8V) : 16.0 kg-cm (222.2 oz-in)
- Torque (6.0V) : 18.0 kg-cm (250.0 oz-in)
- Speed : 0.14s @ 4.8V | 0.12s @ 6.0V
- Operating Voltage : 4.8–6.0V DC
- Bearing Type : Dual ball bearings
- Motor Type : DC motor
- Gear Material : Copper & aluminium
- Working Frequency : 1520μs / 333Hz
- Operating Temperature : -10°C to 60°C
- Size : 40.7 × 20.5 × 39.5 mm (1.60 × 0.81 × 1.56 in)
- Weight : 56.0 g (1.98 oz)
Contact our customer service if you need more information.
