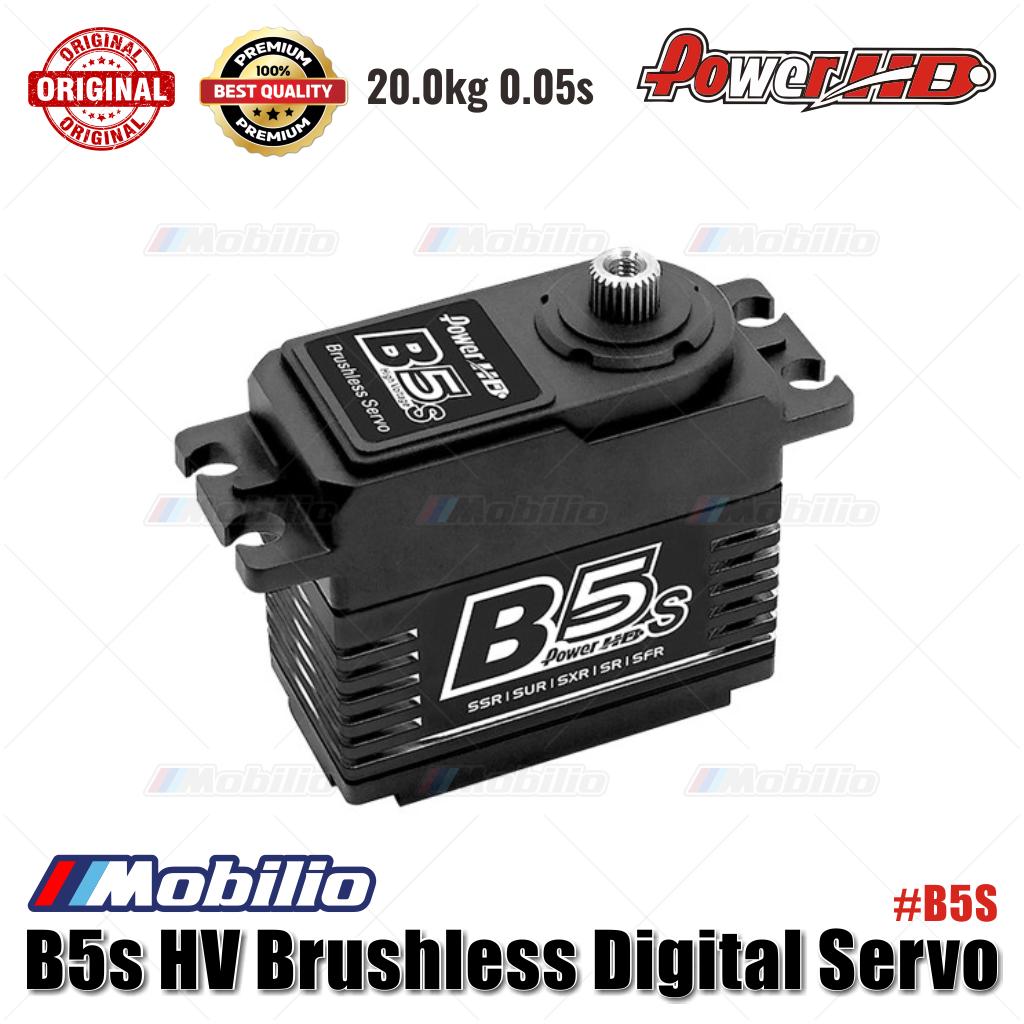

Power HD B5S Brushless HV Servo - 20Kg - 0.055s Metal Gear
The Power HD B5S (HD-B5S) is a high-voltage brushless servo designed for fast response and dependable torque delivery. Offering up to 20.0 kg-cm at 8.4V and a 0.055 s transit speed at 7.4V, it pairs titanium and steel gears with dual ball bearings for smooth, durable operation. A 6.0–8.4V operating range and compact 41.0 × 20.5 × 38.3 mm footprint make it a versatile option for demanding RC control setups.
Key Specifications
- Torque (6.0V) : 16.0 kg-cm (222.2 oz/in)
- Torque (7.4V) : 18.0 kg-cm (250.0 oz/in)
- Torque (8.4V) : 20.0 kg-cm (277.7 oz/in)
- Speed : 0.065 s (6.0V) | 0.055 s (7.4V) | 0.050 s (8.4V)
- Operating voltage : 6.0–8.4 V DC
- Weight : 67.0 g (2.36 oz)
- Bearing type : Dual ball bearings
- Motor type : Brushless motor

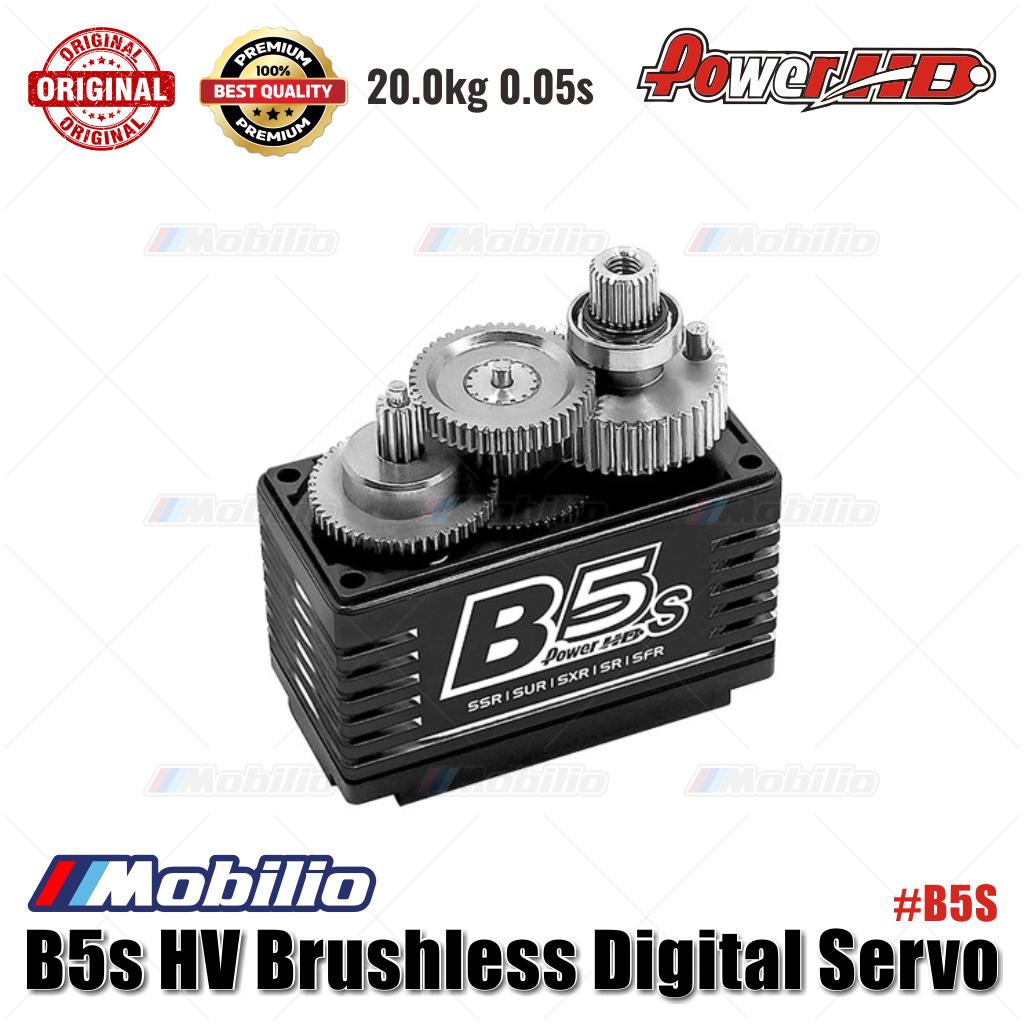

- Gear type : Titanium & steel
- Operating temperature : −20°C to 60°C
- Working frequency : 1520 μs / 333 Hz
- Size : 41.0 × 20.5 × 38.3 mm (1.61 × 0.81 × 1.51 in)
