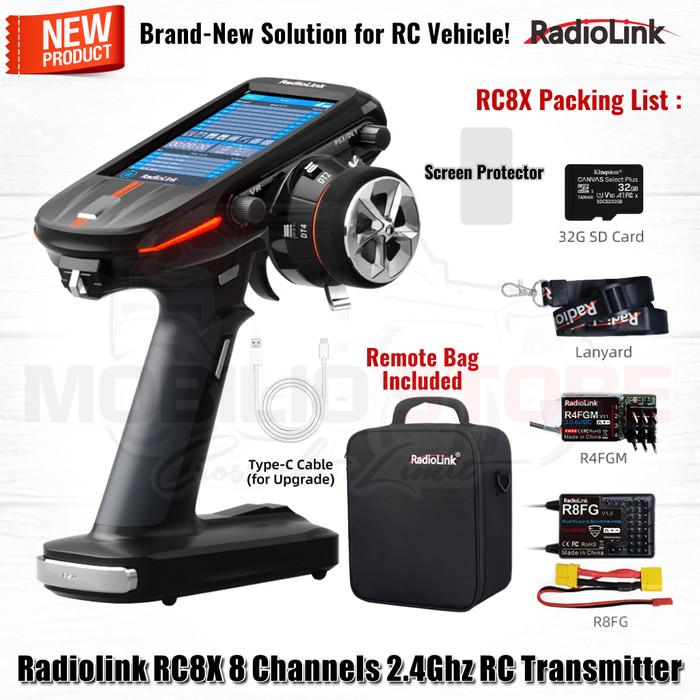

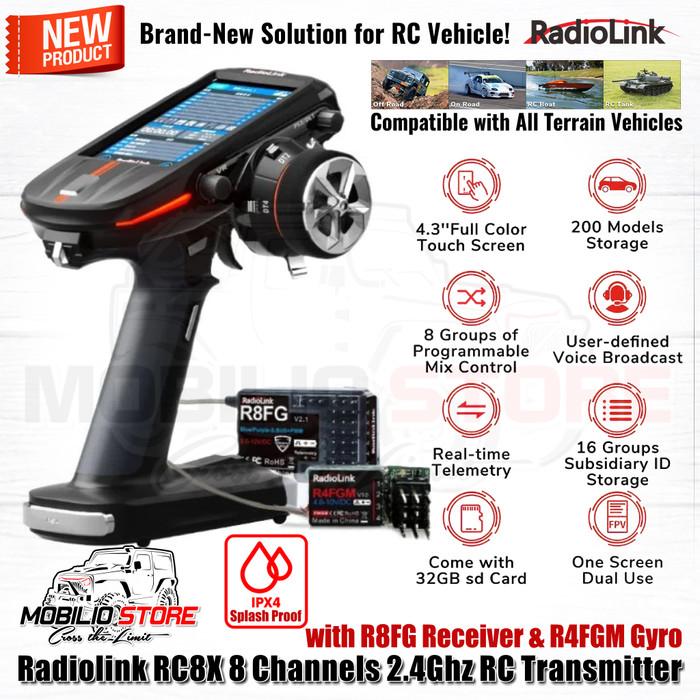

Radiolink RC8X 8 Channels 2.4Ghz RC Transmitter with R8FG Receiver & R4FGM Gyro 4ch
RC8X Specifications :
- Model Type: RC8X
- Channels: 8 channels
- Screen: 4.3 inches, 800*480 dot matrix, full-color, capacitive LCD touch screen
- Working Voltage:7~15V DC (8 pieces of AAA batteries or a 2S-4S LiPo battery or a 6S Ni-MH battery)
- Working Current: 290mA±10mA@8.4V(the LCD screen light on); 200mA±10mA@8.4V(the LCD screen light off)
- Model Storage: 200 models memory
- Control Range: 600 meters on ground
- Program Mix: 8 groups program mixes
- ID Seed: 16 groups
- Voice Broadcast: Support, and all the operating can set alarm with voice broadcast, buzzer, or vibration

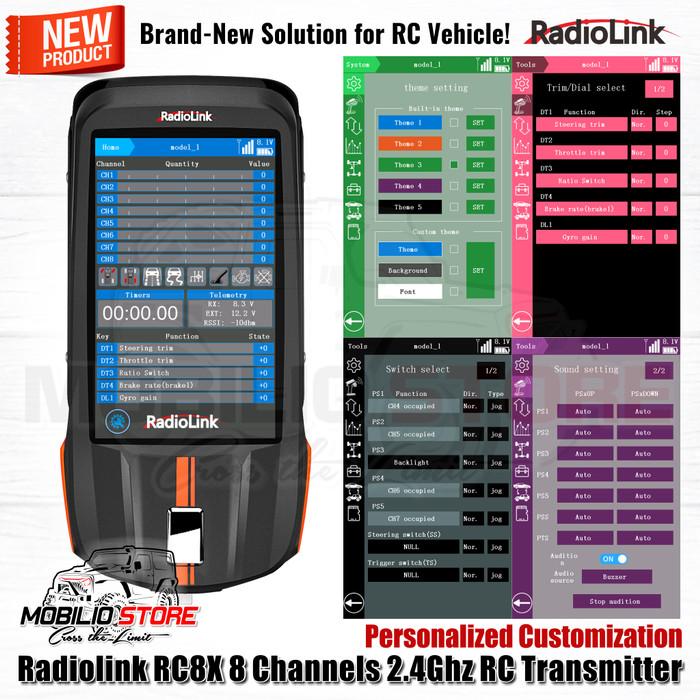

- Menu Customized: Setting Menu, font, desktop, system theme, etc
- Low Voltage Alarm: Low transmitter voltage, low receiver voltage, low model battery voltage or low RSSI alarm can be customized
- CRSF Protocol : Support TBS Crossfire

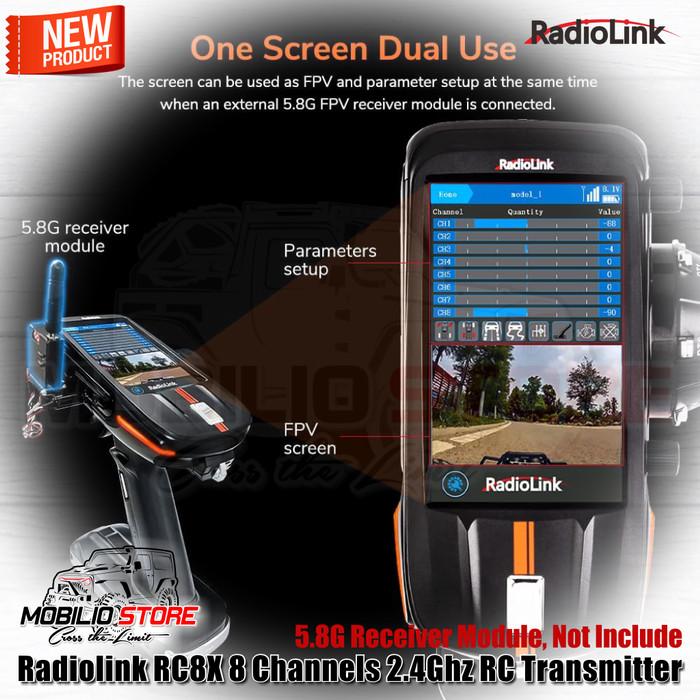

- FPV Head Track Function: Support
- Training Function: Support
- Simulator: Support
- Headphone: Support, 3.5 mm Jack
- Extended Memory: Up to 64GB
- Language: Chinese, English and other
- Upgrade: USB online upgrade
- Transmission Power:
- Channel Resolution: 4096 with regular jitter of 0.5us
- Spread Spectrum Mode: FHSS, 67 channels pseudo random frequency hopping
- Modulation Mode: GFSK
- Frequencies Band: 2.4GHz ISM band (2400MHz~2483.5MHz)
- Applicable Model: RC Car(Including Crawlers/Tanks/Caterpillars)/Boat/Robot
- Compatible Receiver: R8FG(Std), R7FG, R6FG, R6F, R8EF, R8FM, R8F, R4FGM, R4F
R8FG Specifications:
- Channel: 8 channels
- Operating Voltage:3-12V
- Operating Current: 30mA
- Signals: PWM/ SBUS&PWM/ PPM&PWM
- Telemetry: Real-time built-in telemetry of model battery voltage(up 33.6V, 8S Lipo), RSSI, and receiver voltage
- Gyro: Receiver with gyro integrated, customizable gyro sensitivity
- Water Splash Proof: Yes, the waterproof grade is IPX4
- Control Distance: 600 meters
- Weight: 10.5g
