Traxxas 82016 TRX4 TRX-4 Crawler Chassis Kit + Electronic 1/10 Scale Truck

TRX-4 Technology and Innovation-Now Available as a Kit!

Specification :

- Length: 20.57 inches (523 mm)

- Front Track: 9.78 inches (249 mm)

- Rear Track: 9.78 inches (249 mm)

- Ground Clearance: 3.14 inches (80 mm)

- Weight: 102.72 ounces (2.91 kg)

- Height: 10.47 inches (266 mm)

- Wheelbase: 12.28 inches (312 mm)

- Front Shock Length: 3.54 inches (90 mm)

- Rear Shock Length: 3.54 inches (90 mm)

- Approach Angle: 63.82°

- Departure Angle: 43.22°

- Breakover Angle: 59°

- Front Wheels: 1.9 x 1.02 inches (49 x 26 mm)

- Rear Wheels: 1.9 x 1.02 inches (49 x 26 mm)

- Front Tires: 4.64 x 1.89 inches (118 x 48 mm)

- Rear Tires: 4.64 x 1.89 inches (118 x 48 mm)

- Wheel Hex: 12 mm

- Speed Control: XL-5™ HV

- Motor (electric): Titan® 21T reverse rotation

- Differential Type: 4 gear, remote locking

- Transmission: 2-speed Hi-Lo, remote shifting

- Gear Pitch: 32

- Chassis Structure/Material: Steel ladder frame with Nylon composite cross members

- Brake Type: Electronic “Hill Hold”

- Drive System: Shaft-driven 4WD

- Steering: Chassis mounted 2075X metal gear servo

- Radio System: TQi™ 2.4 GHz 4-channel transmitter with #6533 receiver

- Battery Tray: 158.75 mm L x 47 mm W x 23/26 mm H

WHAT YOU'LL NEED:

- TRX-4 compatible body (312 mm)

- 4 AA alkaline batteries

- Battery with Traxxas High-Current Connector

- 6 or 7 cell NiMH battery pack

- 2s or 3s LiPo battery pack

- Battery charger

- Metric hex drivers 1.5 mm, 2.0 mm, 2.5 mm

- Basic hand tools

- screwdrivers, needle nose pliers

- Tire Glue or CA glue

- Safety glasses

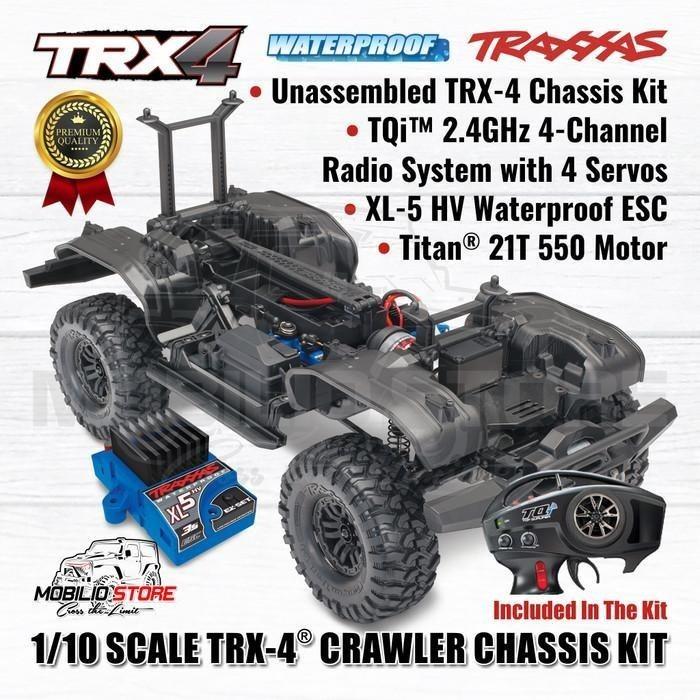

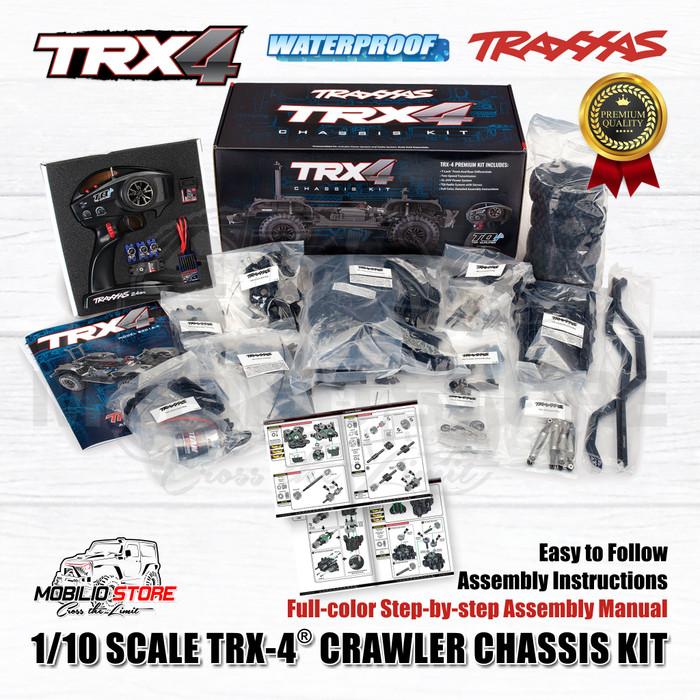

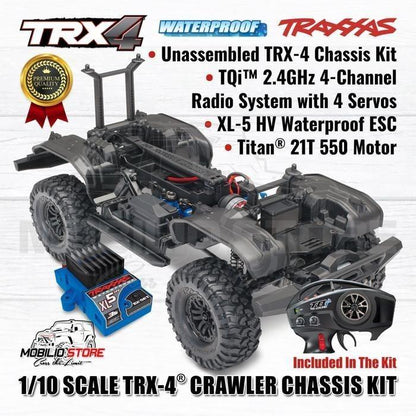

INCLUDED IN THE KIT­:

- Unassembled TRX-4 Chassis Kit

- TQi™ 2.4GHz 4-channel radio system with 4 servos

- XL-5 HV waterproof ESC

- Titan® 21T 550 motor

- Full-color step-by-step assembly manual
