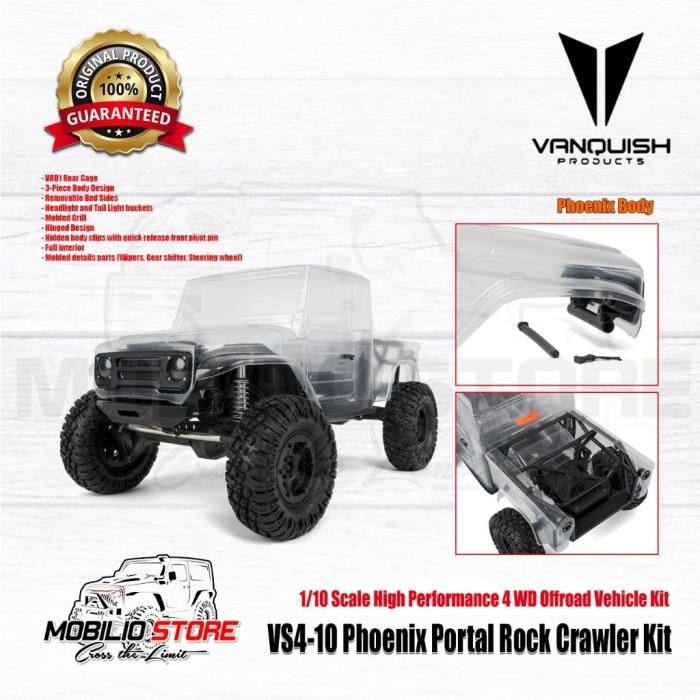

Vanquish 1/10 VS4-10 4WD Rock Crawler KIT W/ Phoenix Portal Clear Body

Vanquish 1/10 VS4-10 4WD Rock Crawler KIT W/ Phoenix Portal Clear Body

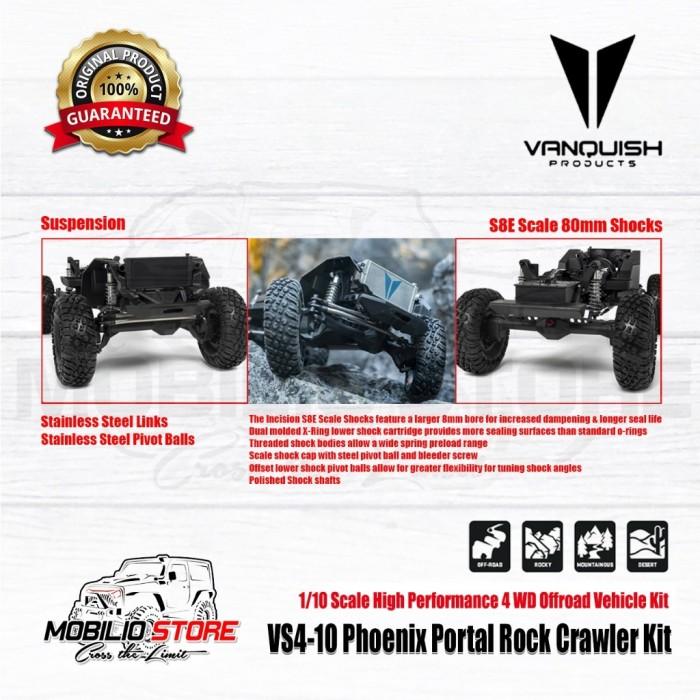

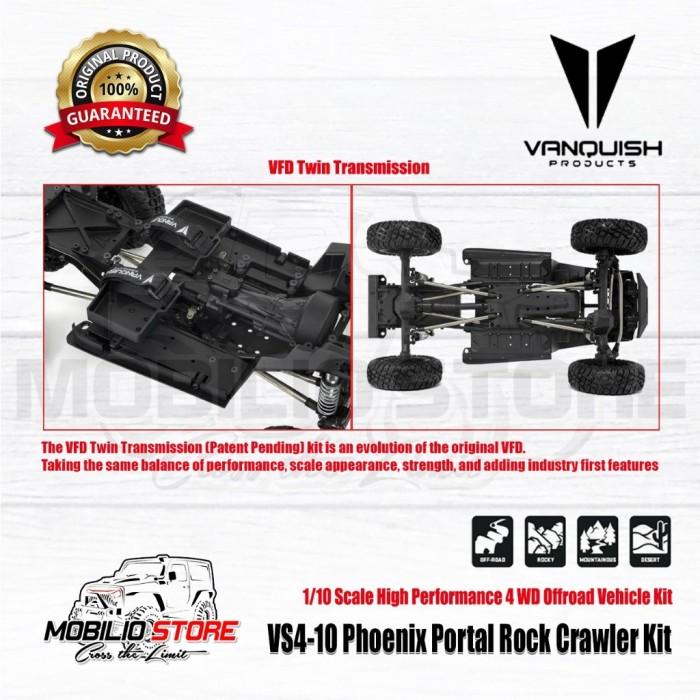

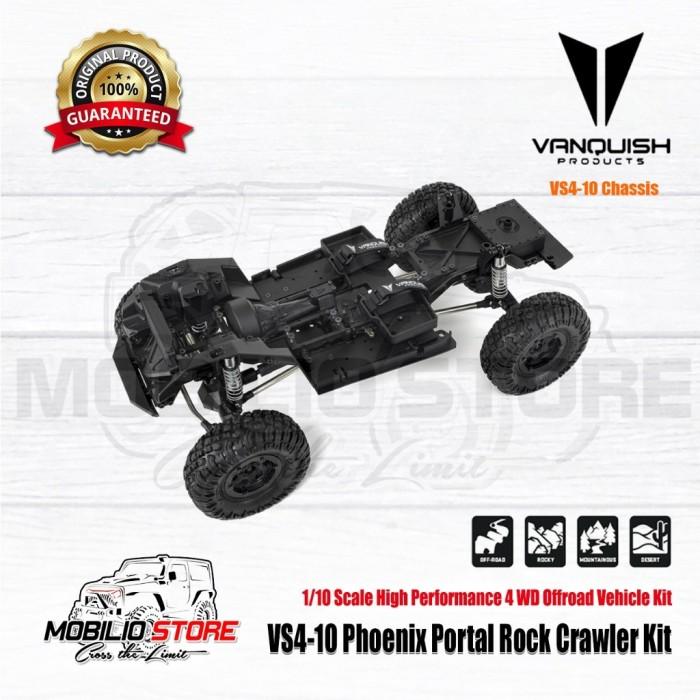

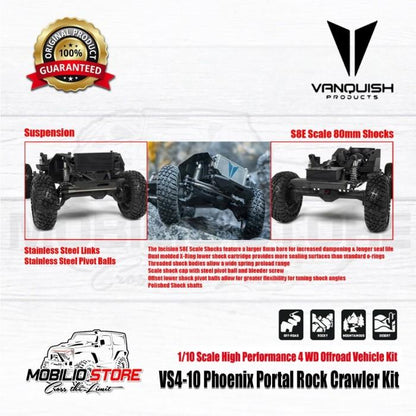

The Vanquish VS4-10 Phoenix Portal Rock Crawler Kit is the first platform to feature the Vanquish Products VFD Twin transmission (patent pending) and F10 Portal Axles. This combination provides performance advantages never before offered in a scale kit of its kind. The VFD Twin incorporates Selectable Overdrive Shifting and a 3-position dig unit into one compact package. The molded F10 Portal Axles utilize a high clearance design which minimizes the size of the pumpkin and maximizes clearance around the C-hub and knuckle. Connecting the VFD Twin to the F10 Portal Axles are the ISD10 driveshafts. The ISD10 Driveshafts have machined CV style joints at each end with molded splined shafts between them for smooth and efficient performance.

Wheels and Tires :

1.9 VXT Tires

1.9 Incision KMC KM233 Hex Beadlock Wheels

Specifications :

- Overall Width : 250mm (9.84")

- Overall height : 250mm (9.84")

- Wheelbase : 313mm (12.3")

- Overall Front Ratio (Standard 6.5% OD) : 53.7:1

- Overall Front Ratio (High 33% OD) : 41.1:1

- Over Rear Ratio : 57.2:1

- Average RTR weight : 6.5lbs (2.9kg) (can vary with electronics)

- Front axle width pin to pin : 190mm (7.5")

- Rear axle width pin to pin : 188mm (7.35")

Needed to Complete :

- ESC

- 540 Motor

- Steering Servo (Vanquish 20mm servo horn recommended)

- Battery

- Transmitter and Receiver

- Polycarbonate Paint for Body

- Paint Tools for Assembly

Additional Electronics for VFD Twin Functionality :

(2) Standard size servos for Dig and Selectable Overdrive (Standard or Low Profile)

(2) 24mm servo horns

4 Channel Transmitter and Receiver
