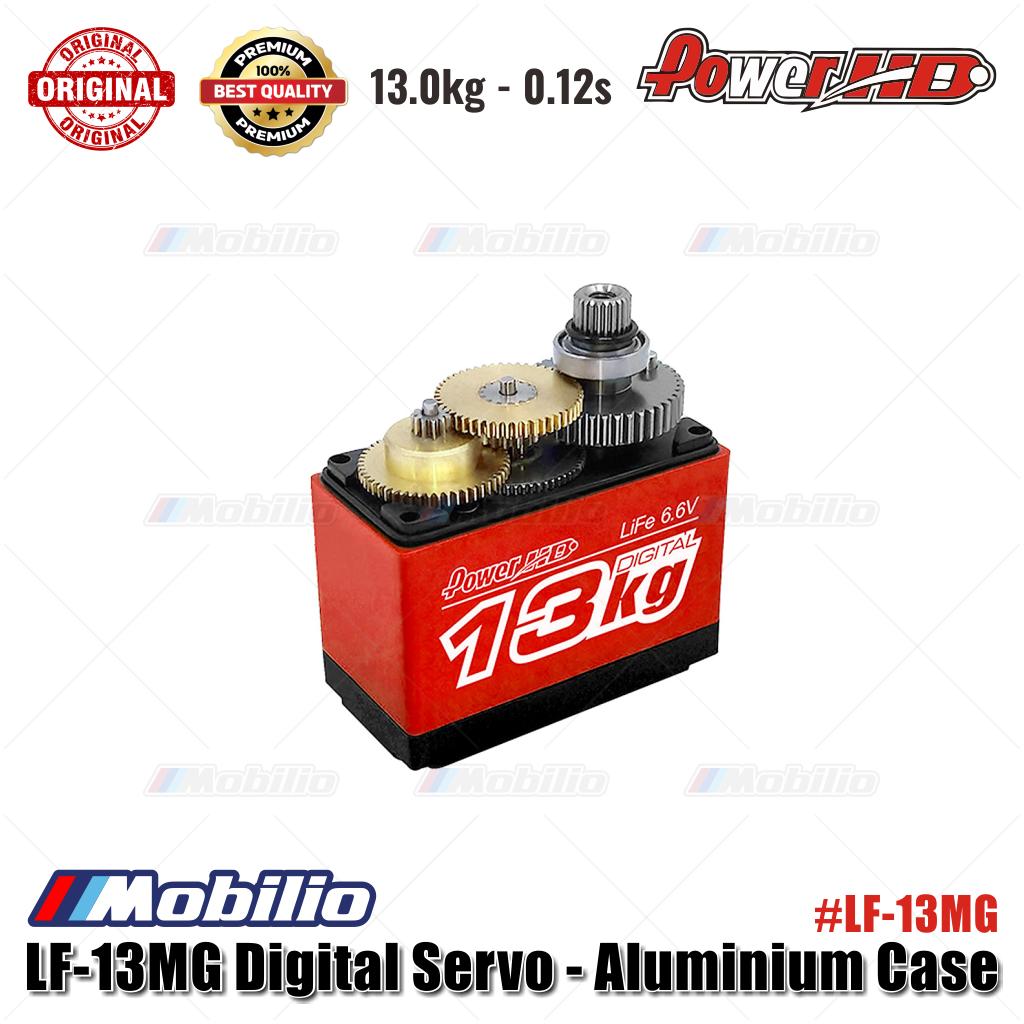

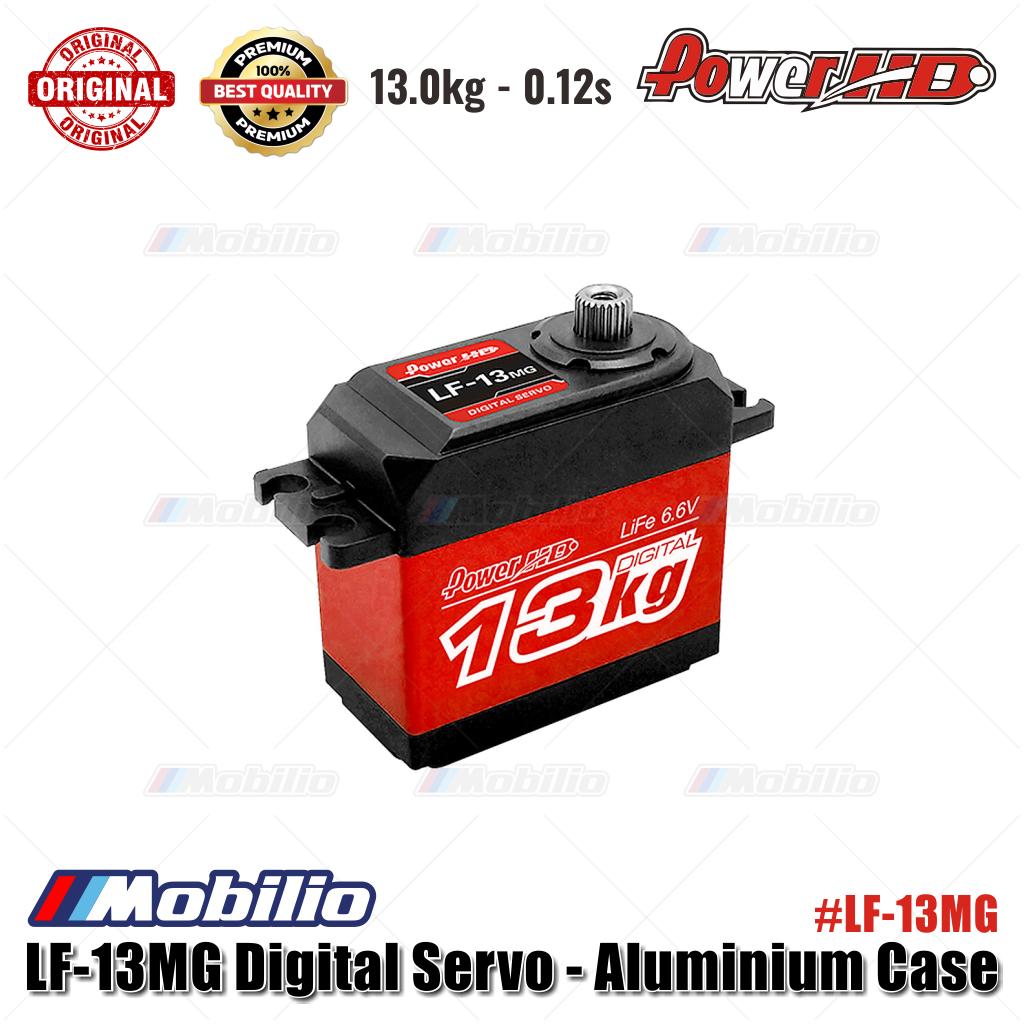

Power HD LF-13MG Digital Servo - Aluminium Case - 13.0kg - 0.12s
The Power HD LF-13MG (part no. HD-LF-13MG) is a digital metal-gear servo in a robust aluminium case, engineered for precise and consistent control. Dual ball bearings and a copper/aluminium gear train provide smooth operation and durability for demanding radio control applications.
Delivering up to 13.0 kg-cm torque at 6.6V with a rapid 0.12s transit speed, it balances power and speed while keeping weight to 60 g. A standard 40.7 x 20.5 x 39.5 mm footprint helps simplify installation.
Specifications
- Type : Digital, metal gear, aluminium case
- Bearings : Dual ball bearings
- Torque (4.8V) : 10.5 kg-cm (145.8 oz-in)
- Torque (6.6V) : 13.0 kg-cm (180.5 oz-in)
- Speed : 0.15s (4.8V) / 0.12s (6.6V)
- Operating voltage : 4.8–6.6V DC
- Weight : 60 g (2.12 oz)
- Motor type : DC motor
- Gear type : Copper & aluminium
- Operating temperature : -20℃ to 60℃
- Working frequency : 1520μs / 333 Hz
- Size : 40.7 x 20.5 x 39.5 mm (1.60 x 0.80 x 1.55 in)
Contact our customer service if you need more information.
