GPM Part #TRX4013CA Aluminum Rear Gear Box Mounts Multiple Positioning Holes Traxxas TRX-4 TRX-6 Trail Crawler

GPM Part #TRX4013CA Aluminum Rear Gear Box Mounts Multiple Positioning Holes Traxxas TRX-4 TRX-6 Trail Crawler

This item is suitable for TRAXXAS TRX4 Defender Trail Crawler, TRAXXAS TRX4 Tactical Unit and TRAXXAS-1/10 TRX-6 MERCEDES-BENZ-88096-4

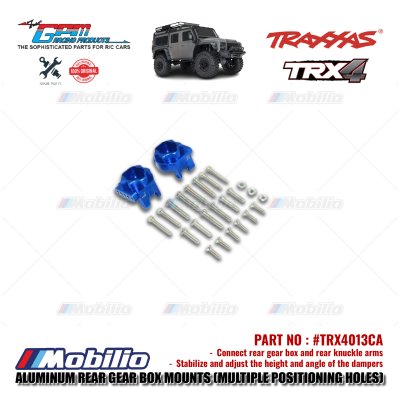

This product includes :
- Stainless Steel Round Head Screws 3x18-4PCS
- Stainless Steel Round Head Screws 3x16-2PCS
- Stainless Steel Round Head Screws 3x14-2PCS
- Stainless Steel Round Head Screws 3x12-2PCS
- Stainless Steel Cap Head Screws 2.5x16-4PCS
- Stainless Steel Flat Screws 2.5x10-6PCS
- 3x6x2 Alloy Collar-6PCS

Product major function & usage:

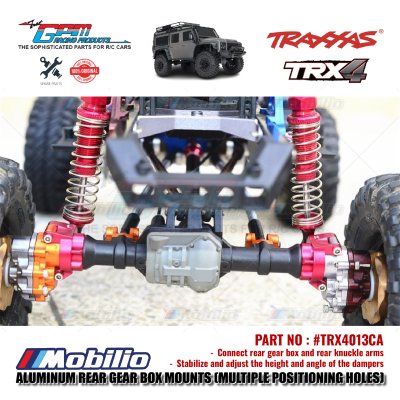

1. Connect rear gear box and rear knuckle arms
2. Stabilize and adjust the height and angle of the dampers

1. Made with a quality light weight high tensile strength aluminum 6061 T6 for more stable performance with great durability.

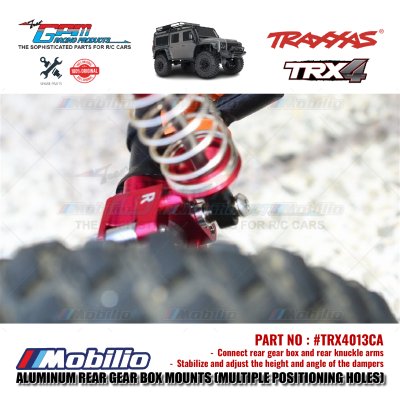

2. The position of dampers are modified after the installation of this product. Original installation: the dampers sit in a vertical position. Modified installation: the dampers sit slightly outward. This is to enhance the stability of the vehicle and allow adjustment on the height of dampers.

1. Connect with the rear knuckle arms with a C-clamp design, easy installation
2. The position of dampers are modified after the installation of this product. Original installation: the dampers sit in a vertical position. Modified installation: the dampers sit slightly outward. This is to enhance the stability of the vehicle and allow adjustment on the height of dampers.

Other special notes and comments
1. Suitable for Traxxas TRX-4 Defender & Tactical Unit.
2. The 2pcs of stainless steel round head screws 3x18 are for stabilizing the tie rods, different to original installation which was to stabilize the tie rods & dampers together.
3. When stabilizing the damper on different positioning holes:
(i) Use 3x12 screws when install without alloy collar.
(ii) Use 3x14 screws when install with 1 alloy collar.
(iii) Use 3x16 screws when install with 2 alloy collar.
(iv) Use 3x18 screws when install with 3 alloy collar.

Contact our customer service if you need more information.
