SKYRC Bluetooth 5.0 Dongle Module untuk NC2200 dan B6EVO

SKYRC Bluetooth 5.0 Dongle Module for NC2200 and B6EVO

Features:
Bluetooth 5.0 connects at high speed and long distance.

Used for SkyRC devices and ready to connect directly.

Description:

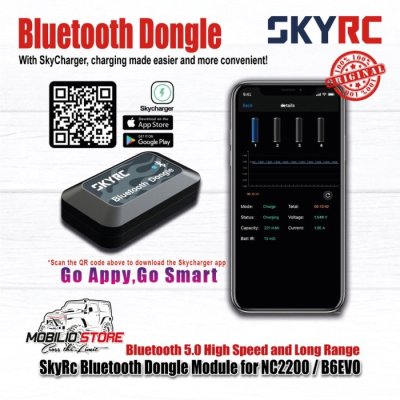

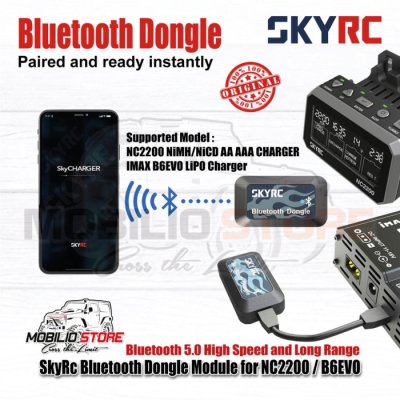

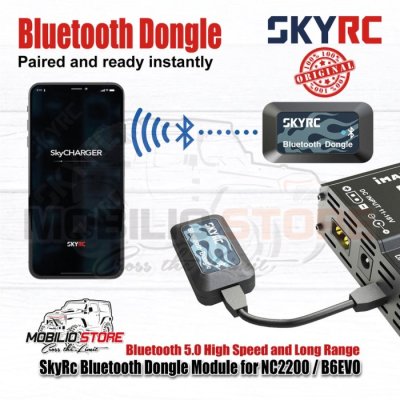

SkyRC Bluetooth Dongle (SK-600135) is a Bluetooth Dongle to connect SkyRC NC2200 and B6EVO chargers to your smartphone to control and monitor the devices via SkyCharger app.

Specifications:
Brand: SKYRC
Item Name: Bluetooth Dongle
Item Number: SK-600135
Input Voltage: 4.5V-5.5V
Input Current: 20mA
Working Power: Max 110mW
Bluetooth Version: 5.0
Range: 15M
Interface: micro USB
Bluetooth Status:
LED blinks blue: ready for connection
LED stays solid blue: connected
Working Power: Max 110mW.
Bluetooth Version: 5.0
Working Temperature: -10 to 55 / 14 to 131°F
Storage Temperature: -20 to 70 / -4 to 158°F

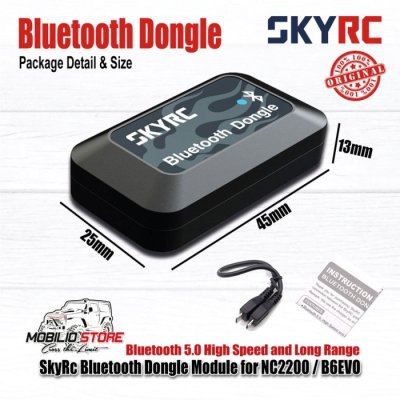

Dimensions: 45x25x13mm
Weight: 9g

App:
1. Download SkyCharger App from App Store or Google Play to install; 2. Connect the dongle to the SkyRc NC2200/B6EVO charger
3. Turn on the charger, the LED on the Bluetooth dongle will flash blue
4. Enable Bluetooth on your smartphone;
5. Open SkyCharger to search for Bluetooth;
6. When the device named [b-dongle-XXXX] appears, tap to connect;
7. When the connection process is complete, the LED on the Bluetooth dongle will stay blue;
8. Control and monitor the charger as you wish.

*For more app instructions, please check the related device manual.

Useful notes and tips:
1. You can only control the device with one phone at a time;
2. When you try to connect the device, make sure the LED on the dongle flashes blue.

Package Includes:
1 x Bluetooth Dongle
1 x User Manual
1 x USB 2.0 Cable

Contact our customer service if more information is needed.
